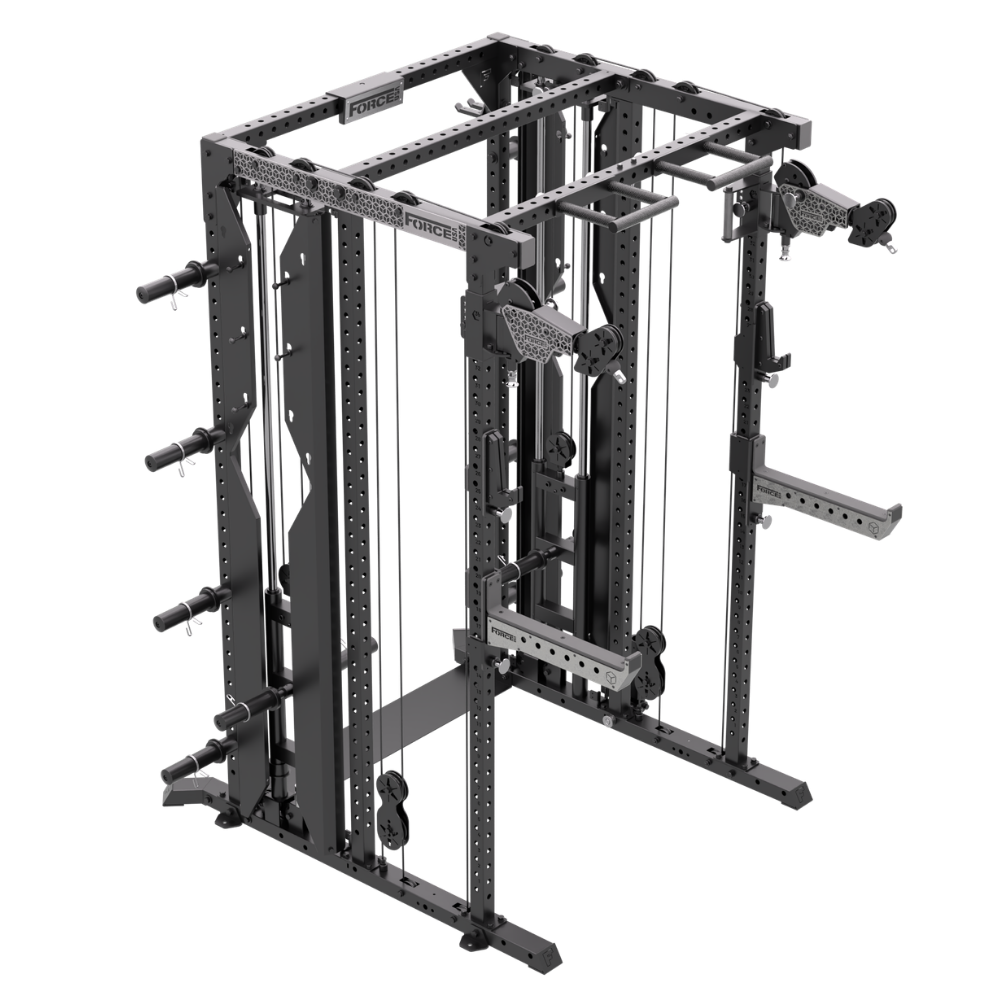

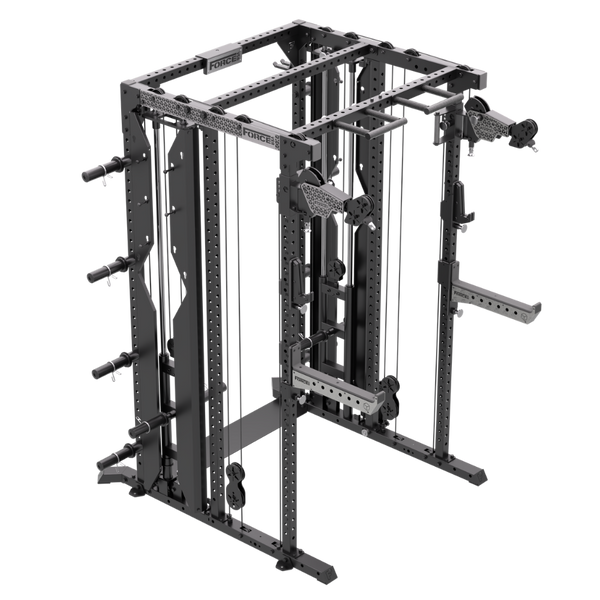

Force USA M10 All-In-One Trainer

Force USA
$2,679.00$3,099.00
Assembly
Type of Weight

This product is unavailable

Specifications

  • Pulley Ratio
    2:1 or 1:1 using Variable Force Pulley System
  • Weight Stack
    2 x Plate Loaded Pulley System, upgradable to weight stacks
  • Compatible Fitness Apps
    Force USA Training App

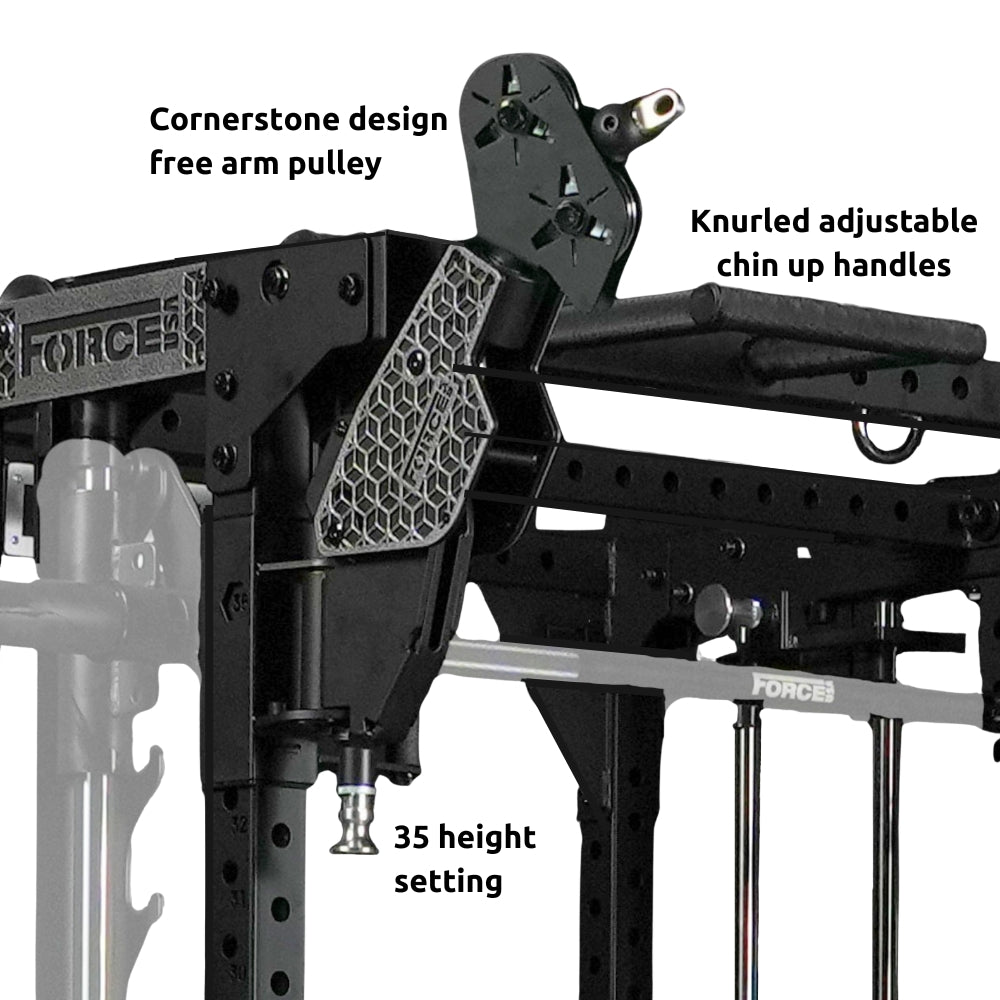

  • Adjustability
    35 adjustable cable position
  • Mainframe
    50 x 50mm
  • Material
    Heavy-duty 11-gauge steel
  • Sleeve Diameter
    50mm / 2 in
  • Storage Sleeve
    8 x 10cm weight storage horns
  • Extra Features
    Attachments included. Optional upgrades available.
  • Installation
    Not included. Please refer to the option for assembly service.

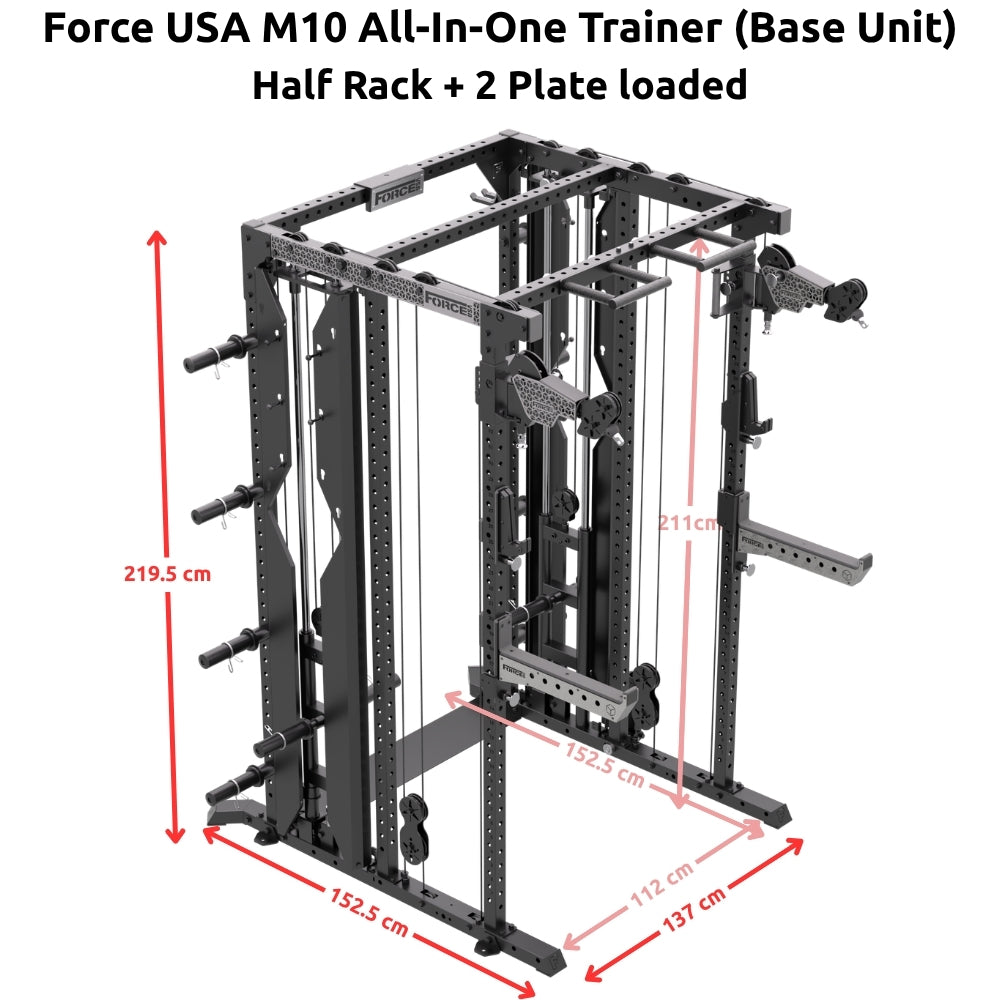

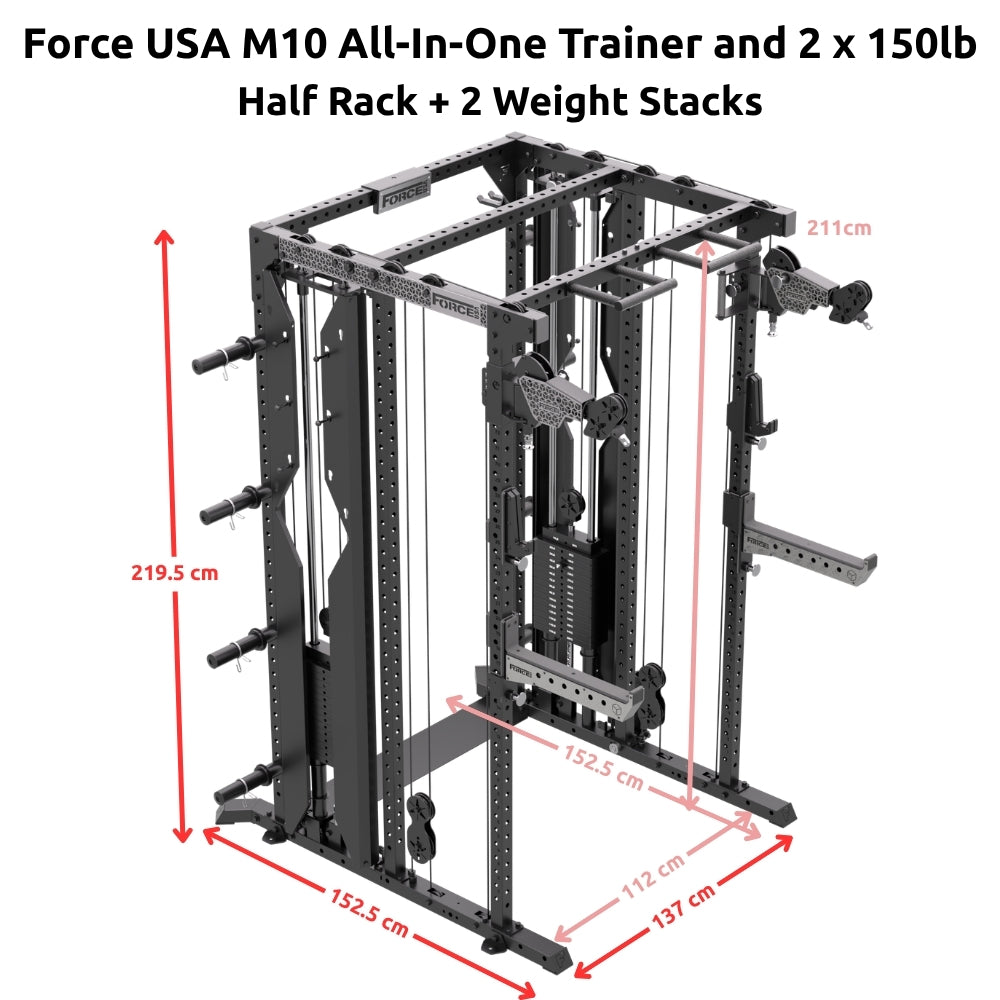

  • Dimensions
    152.5 (L) x 137 (W) x 219.5 (H) cm
  • Product Weight
    Plate Loaded: 222.26kg (490lb) / 2 x 150lb Weight Stacks: 358.3kg (789.9lb)
  • Max Load
    Plate loaded Cable: 122kg (270lb) [Each Pulley Arm] / Weight Stack: 91kg (200lb) [Each Pulley Arm] / J-hooks & Safety Spotters: 450kg (992lb) / Chin Up Bar : 350kg (772lb)

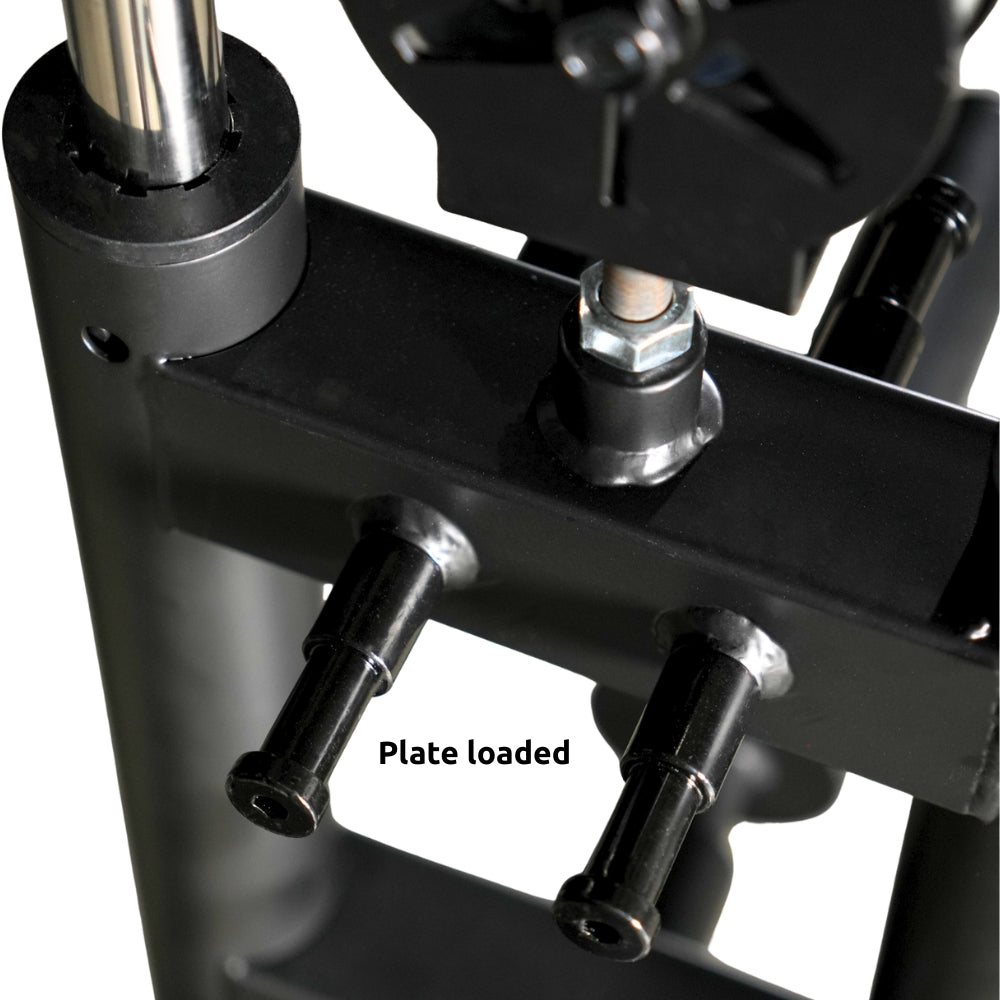

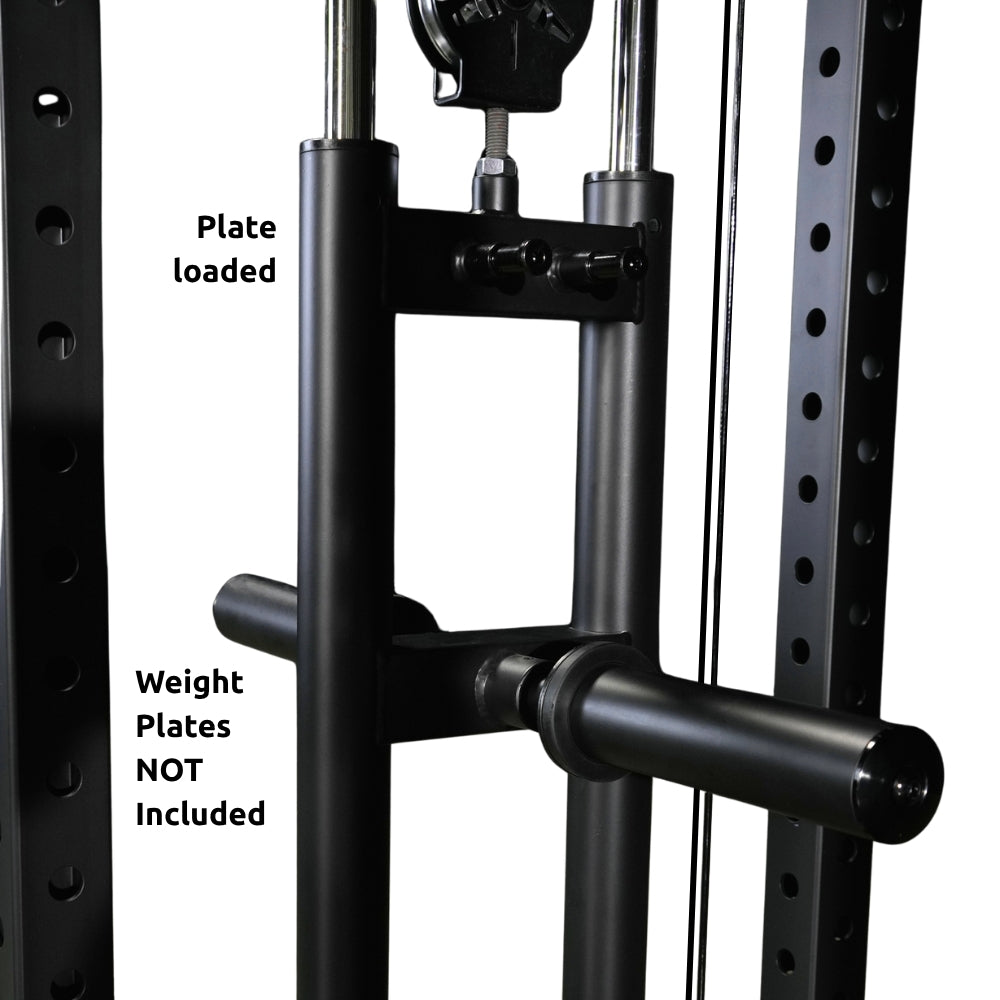

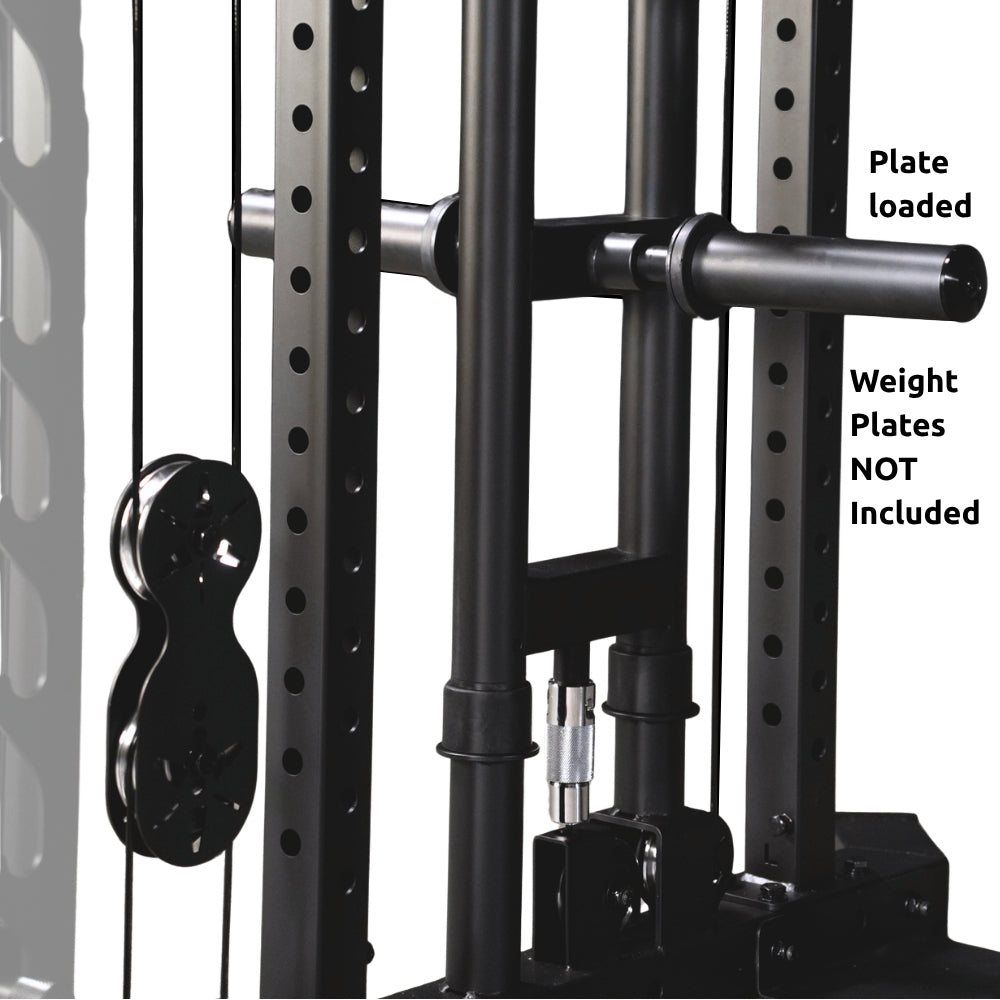

  • Loadable Sleeve
    2 x sleeve for each plate loaded pulley system
  • Surface Coat
    Industrial black powder coat
  • Warranty for Home
    Strength premium: Lifetime on structural frame (excludes coating & rust), 2 years on moving frames & components (bearings, lock pins, pulleys, cables, glide rods etc), 1 year on labour. Wear & tear exclusion.

Description

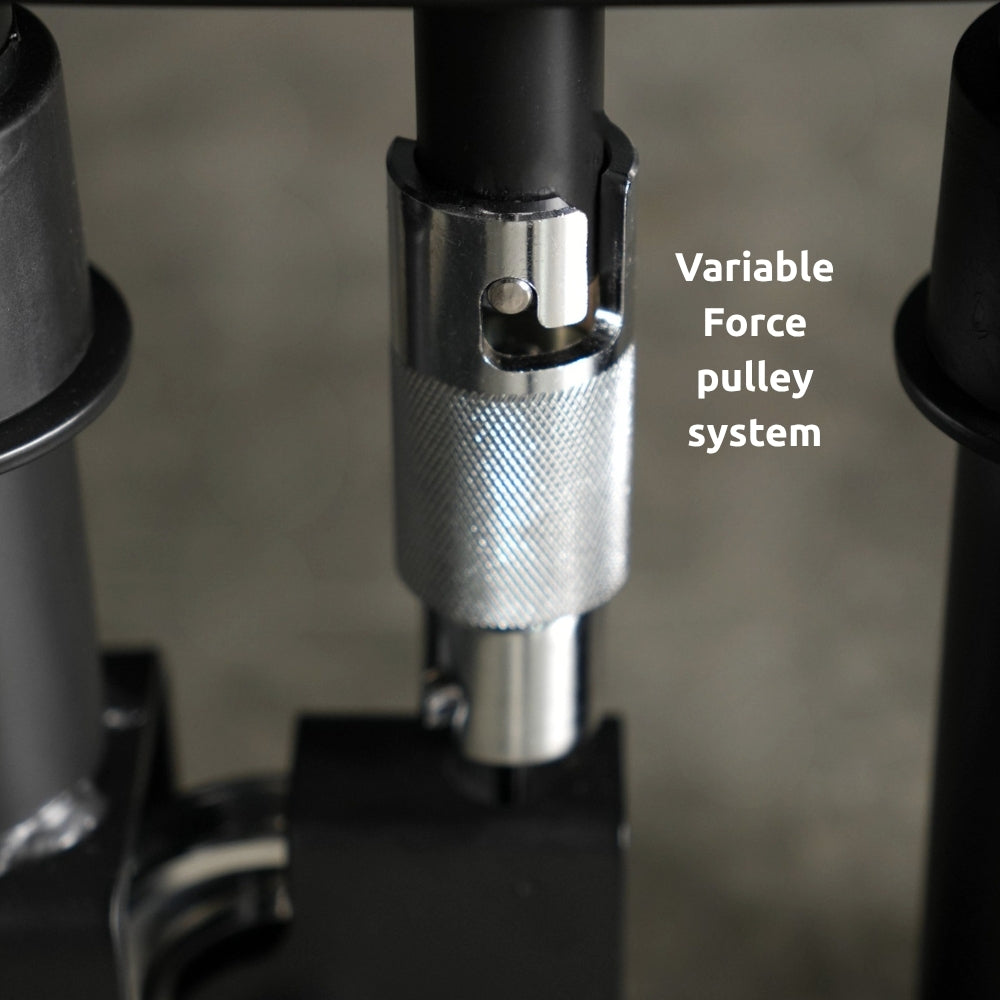

The Force USA M10 All-In-One Trainer delivers true commercial-grade quality in a compact 2"×2" rack design. Built with heavy-duty 11-gauge steel, 16mm (⅝") hole sizing, and consistent 50mm (2") spacing on all sides, it stands apart from typical lighter-duty racks in this category. A key feature is the latest Variable Force pulley system, allowing fast switching between 1:1 and 2:1 cable ratios without reconfiguring the setup.

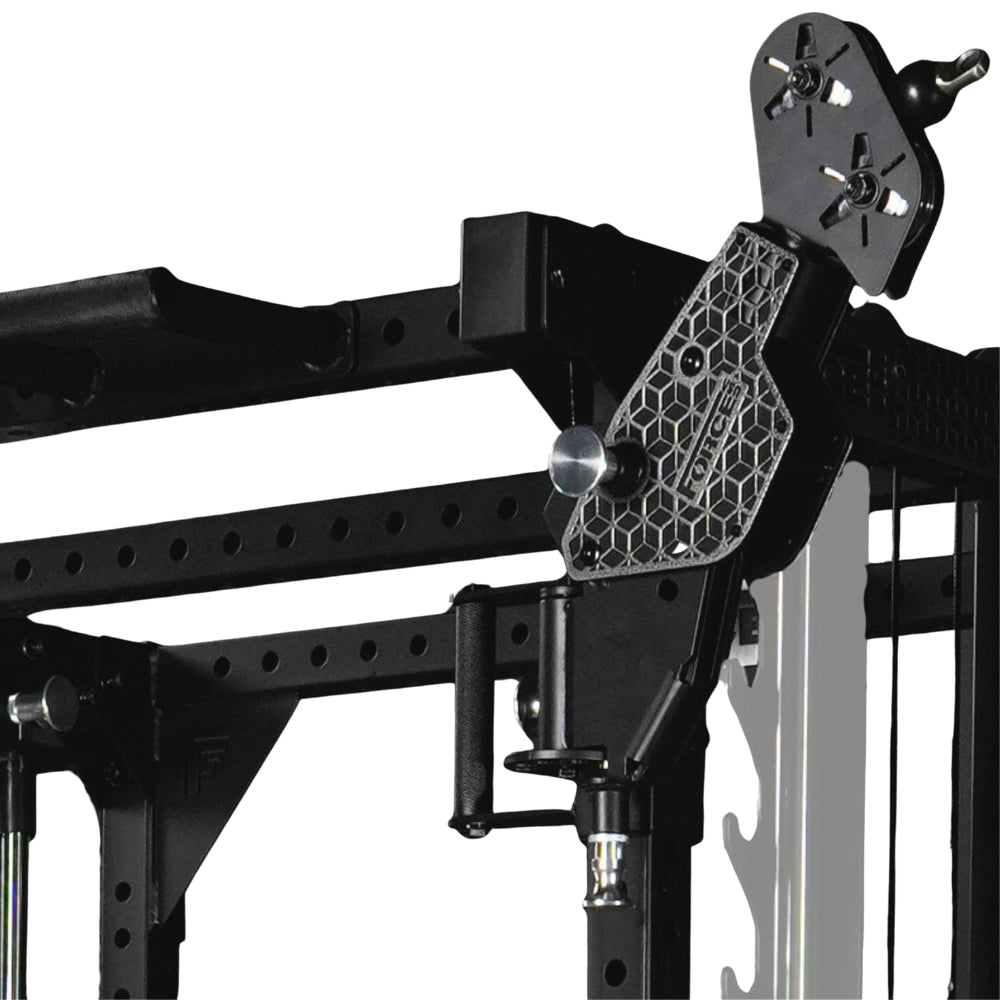

Available in both plate-loaded and weight stack versions, both models share the same dual-sided walk-through rack design with adjustable Freestyle Pulley Arms for fixed or dynamic training. In the plate-loaded selection, each pulley arm is rated at a max load of 122kg (270lb). It also comes complete with a wide range of attachments, the list can be found below. When selected with dual weight stacks, each 68kg (150lb) weight stack provides a clean set up for your cable system.

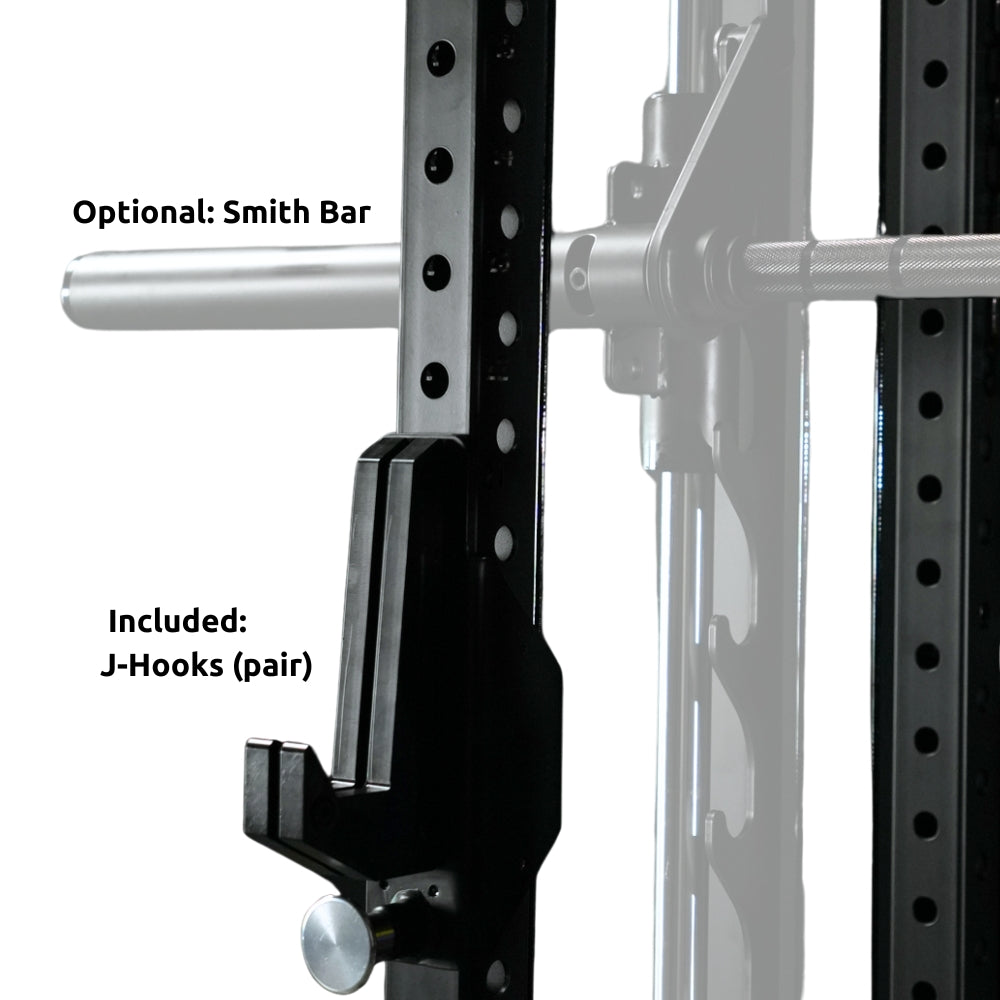

The Force USA M10 All-In-One Trainer is designed for future expansion, with optional upgrades of the 68kg (150lb) weight stacks to the maximum of 91kg (200lb) each, catering for individuals of all fitness levels as well as the optional expansion of an integrated Smith Machine. This Smith Machine further enhances heavy lifting performance with a smooth guide system, knurled Olympic bar, and multiple safety catch points.

Ideal for home gyms and serious lifters, the M10 combines compact sizing with versatile training capability, high cable capacity, unrestricted cable movement, and commercial-grade strength.


Force USA M10 All-In-One Trainer includes:
- J-Hooks (pair)

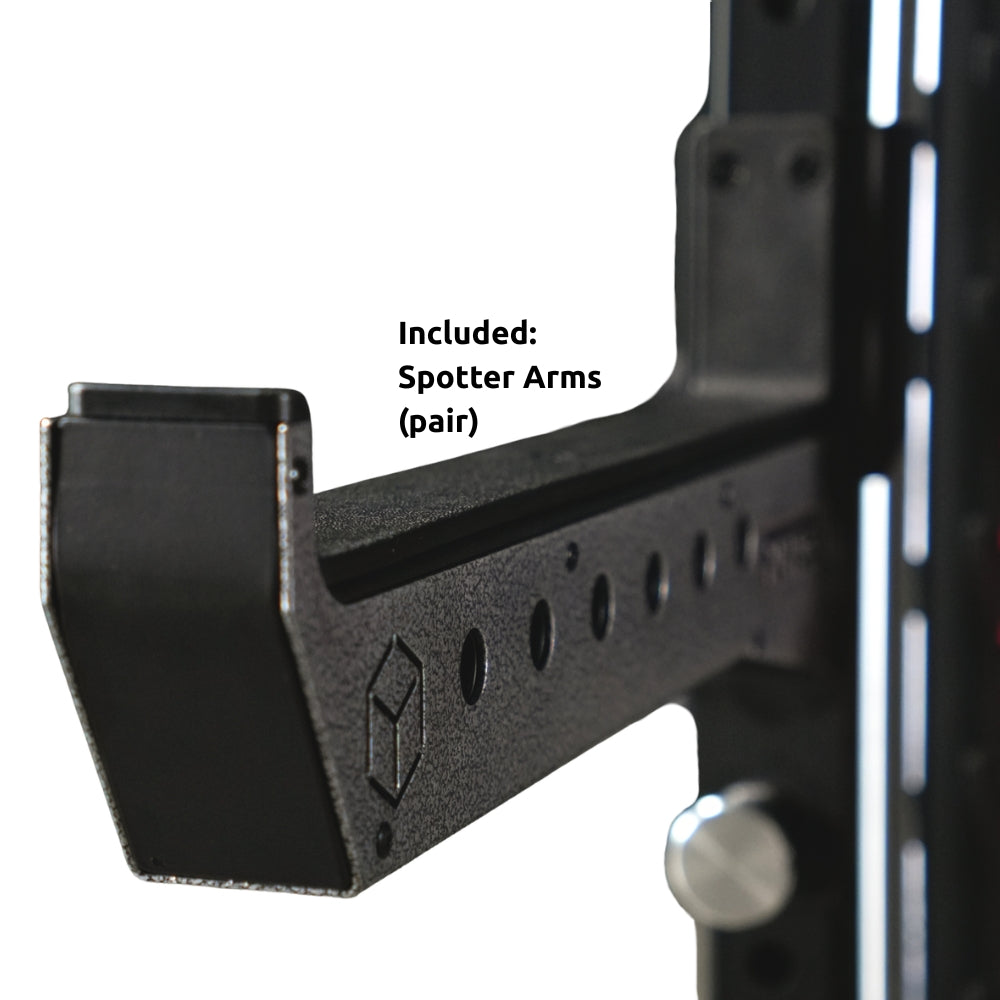

- Spotter Arms (pair)
- Aluminum Revolving Lat Pulldown Bar
- Tricep Rope
- Single Knurled Handles (pair)
- Close Grip Triangle / Landmine Handle
- Hexagon L-Brackets ×4 (for bolting the machine to the floor)
- Magnetic Landmine
- Magnetic Collars (pair)
- Extension Chains ×4
- Oval Black Carabiners ×8 (rated to 400 kg / 882 lb)
- Ankle Cuffs ×2
- Bodyweight Assisted Strap
- Mag Pins ×4
- Spring Collars ×8

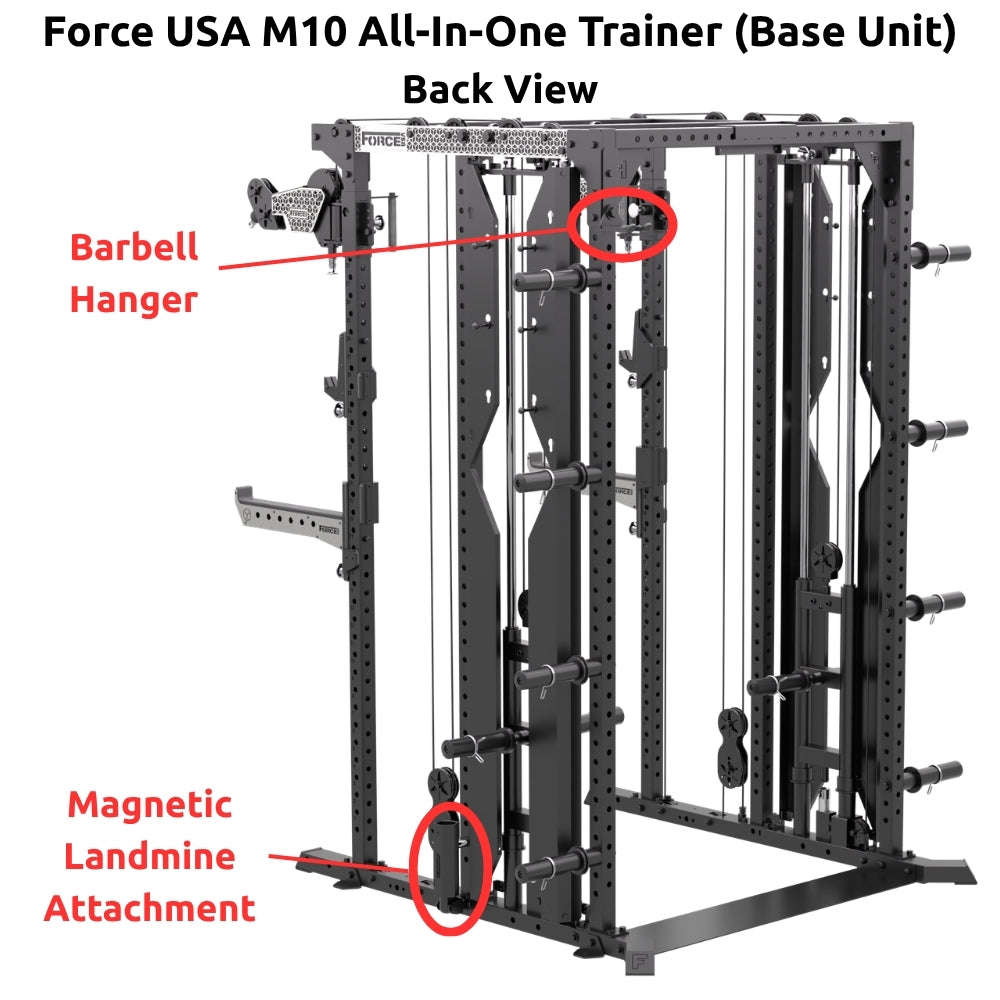

- Barbell Holder
- Peg Board / 2" Pins ×4
- Double Hook Pins ×2
