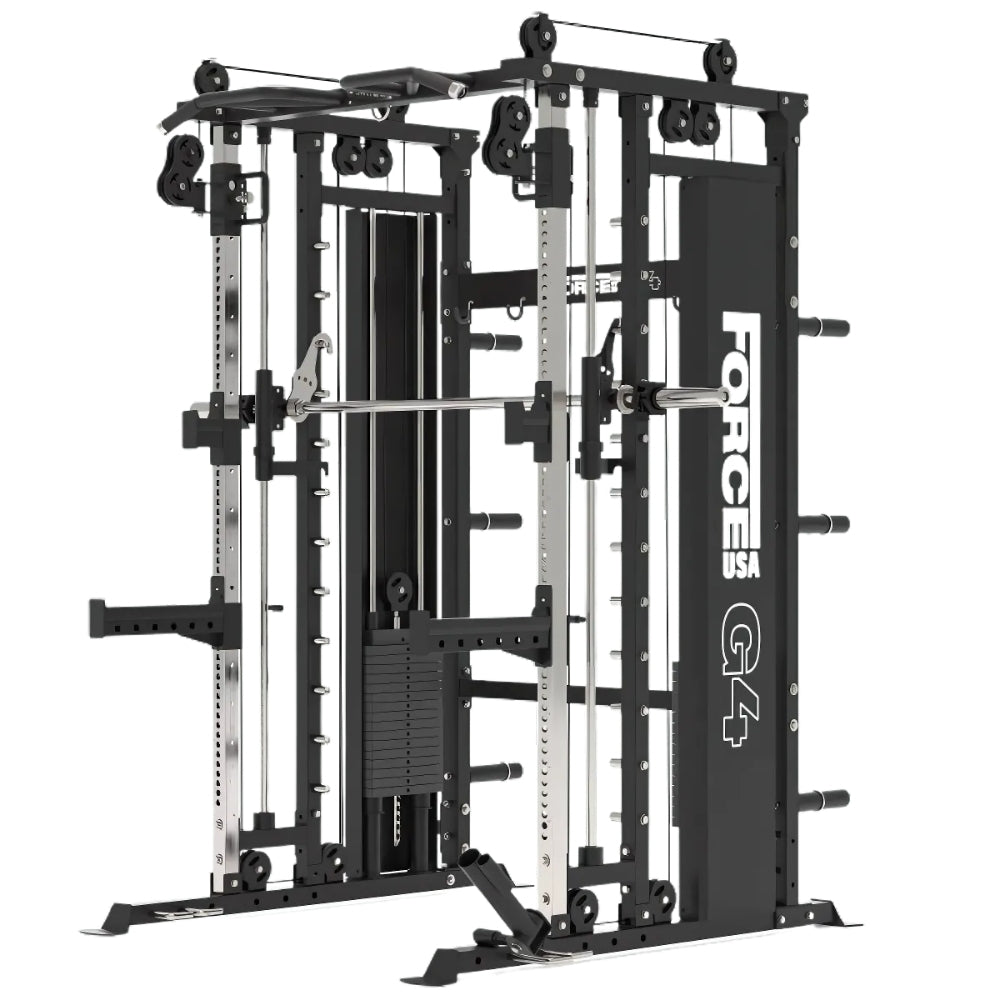

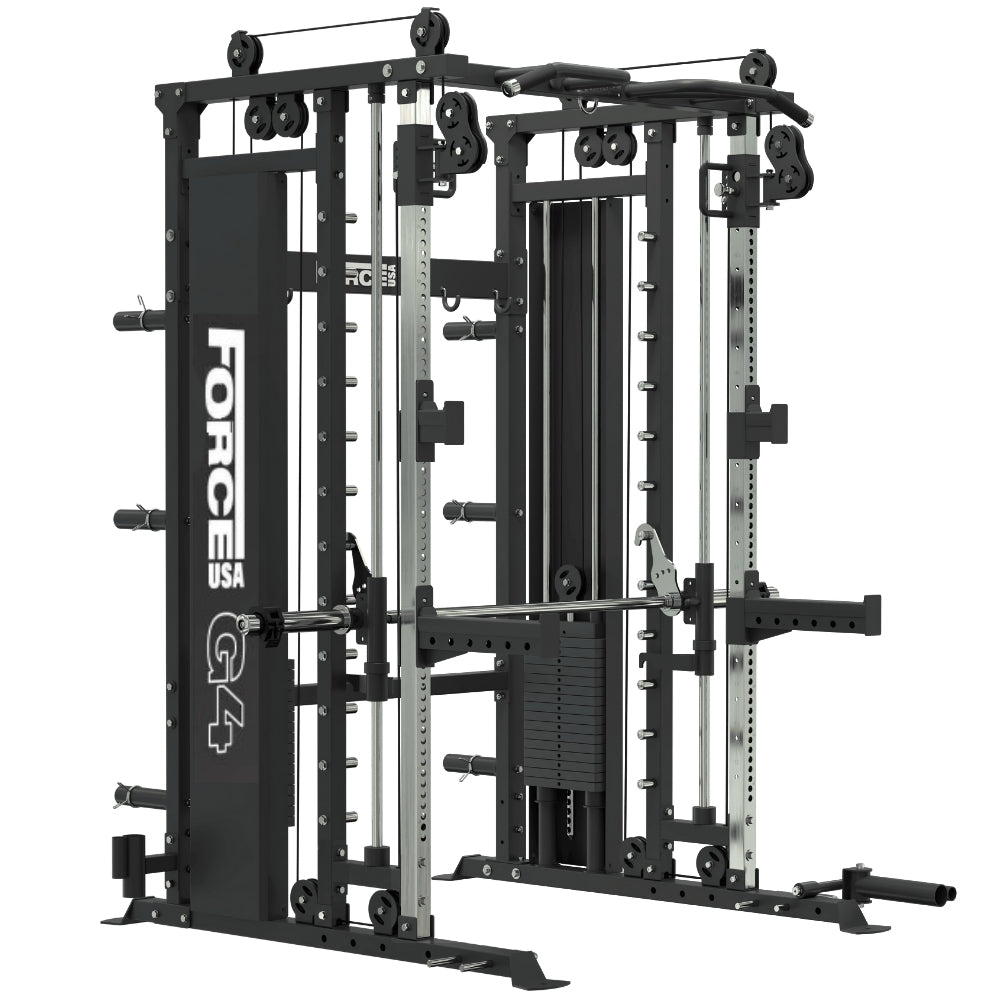

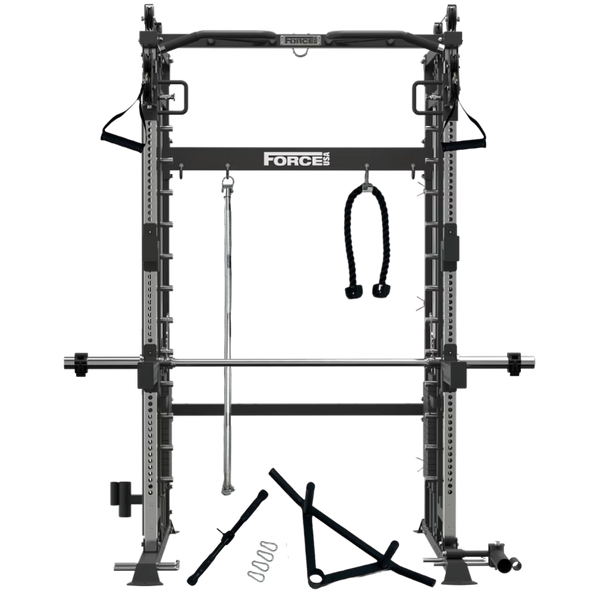

Force USA G4 All-In-One Trainer

$3,499.00$4,299.00

Assembly

This product is unavailable

Specifications

  • Pulley Ratio
    2:1
  • Weight Stack
    2 x 77kg (170lb), Option to upgrade to 100kg (220lb) each side.
  • Compatible Fitness Apps
    Force USA App

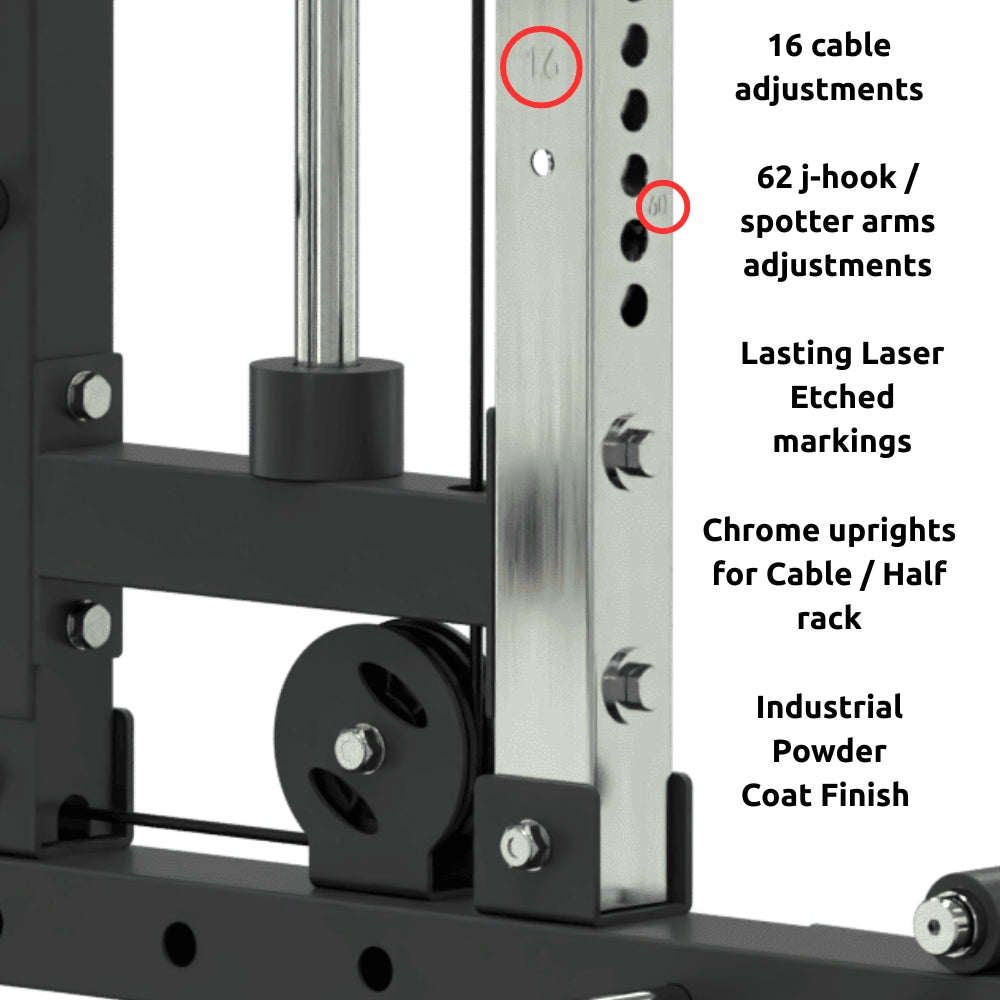

  • Adjustability
    16 adjustable cable position
  • Spotter Length
    37cm
  • Mainframe
    50 x 50 mm (2" x 2"), steel frame uprights
  • Material
    Heavy gauge structured steel tubing
  • Sleeve Diameter
    50mm / 2in
  • Storage Sleeve
    6 x 20cm weight storage horn
  • Grip Diameter
    32mm (Chin Up)
  • Extra Features
    Multiple attachments included
  • Installation
    Not included. Please refer to the option for assembly service.

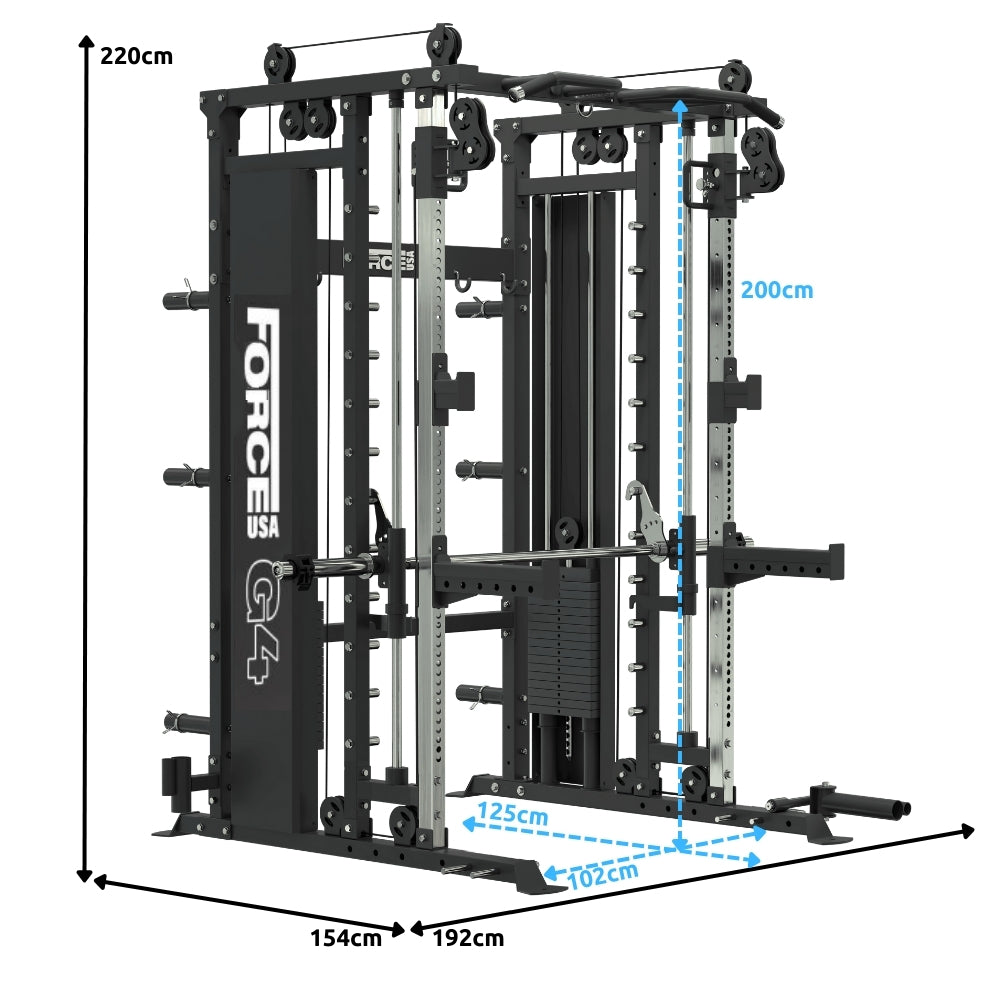

  • Dimensions
    192 (W) x 154 (D) x 220 (H) cm
  • Product Weight
    354kg
  • Max Load
    Rack: 450kg; Chin Up and Smith Bar: 350kg; Functional Trainer: 100kg per weight stack after upgrade.
  • Hole Size
    18mm (5/8")
  • Hole Spacing
    Westside spacing (25mm) on the uprights, 62 points from top to bottom.
  • Loadable Sleeve
    2 x 30cm (Smith Bar)
  • Surface Coat
    Commercial grade powder coating
  • Warranty for Home
    Strength premium: Lifetime on structural frame (excludes coating & rust), 2 years on moving frames & components (bearings, lock pins, pulleys, cables, glide rods etc), 1 year on labour. Wear & tear exclusion.

Description

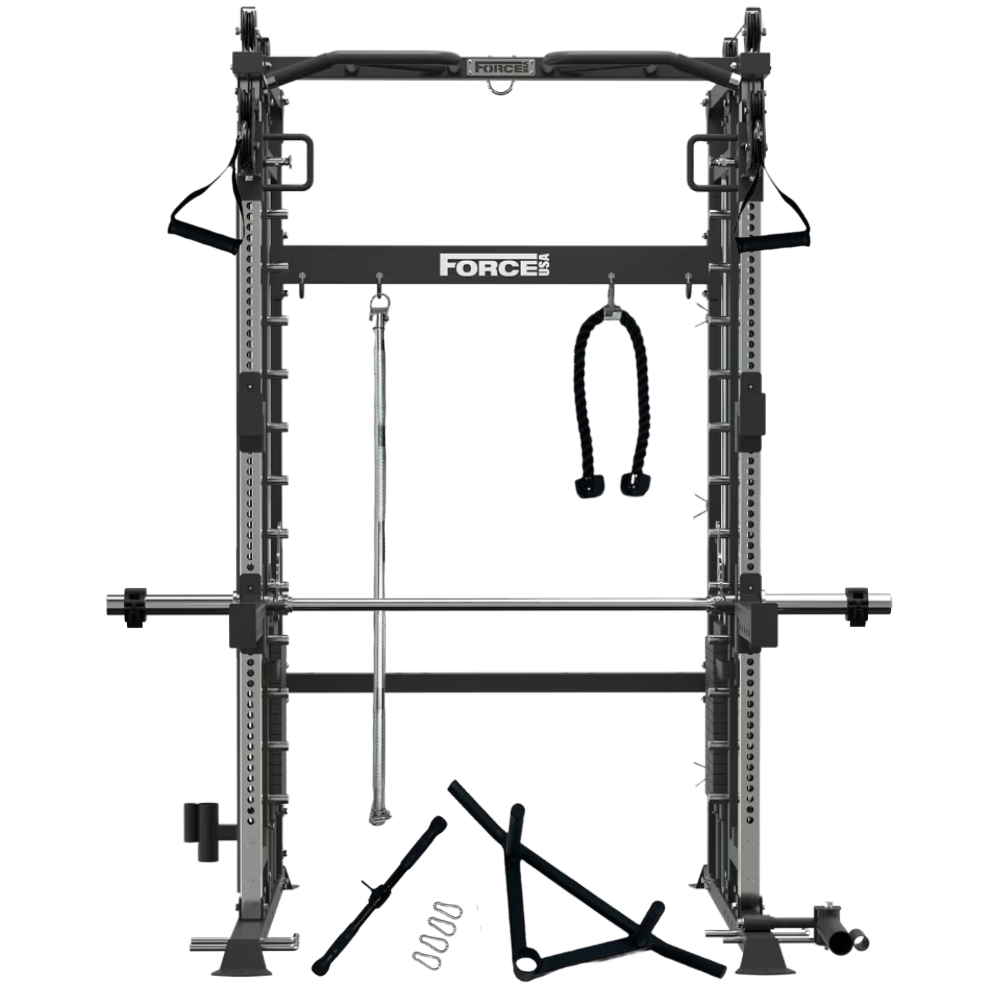

Train smarter, not harder, with the Force USA G4 All-In-One Trainer and its five core training zones – Functional Trainer, Landmine, Smith Machine, Half Power Rack, and Multi-Grip Pull-Up Bar – delivering a complete workout solution in one compact footprint. This versatile setup lets you tackle full-body routines, target specific muscle groups, and switch exercises effortlessly without cluttering your home gym.

Maximise upper-body development with the 5-position multi-grip pull-up bar, allowing wide, narrow, and neutral grips for varied muscle activation and shoulder-friendly training. The chromed front uprights provide owners a built-in Half Power Rack and are equipped with commercial-grade J-hooks and spotter arms, ensuring rock-solid stability and safety during squats, bench presses, and other heavy lifts.

The Smith Machine offers smooth, balanced movement on sealed bearing guide rails with multiple safety lockout points, allowing controlled lifts and heavy training without the need for a spotter. The Landmine/Core Trainer attachment adds rotational and functional strength training to your workouts, perfect for core twists, single-arm rows, presses, and explosive power moves. It features a 360-degree pivot design and is compatible with both 32 mm and 50 mm barbells, offering endless exercise variations for all fitness levels.

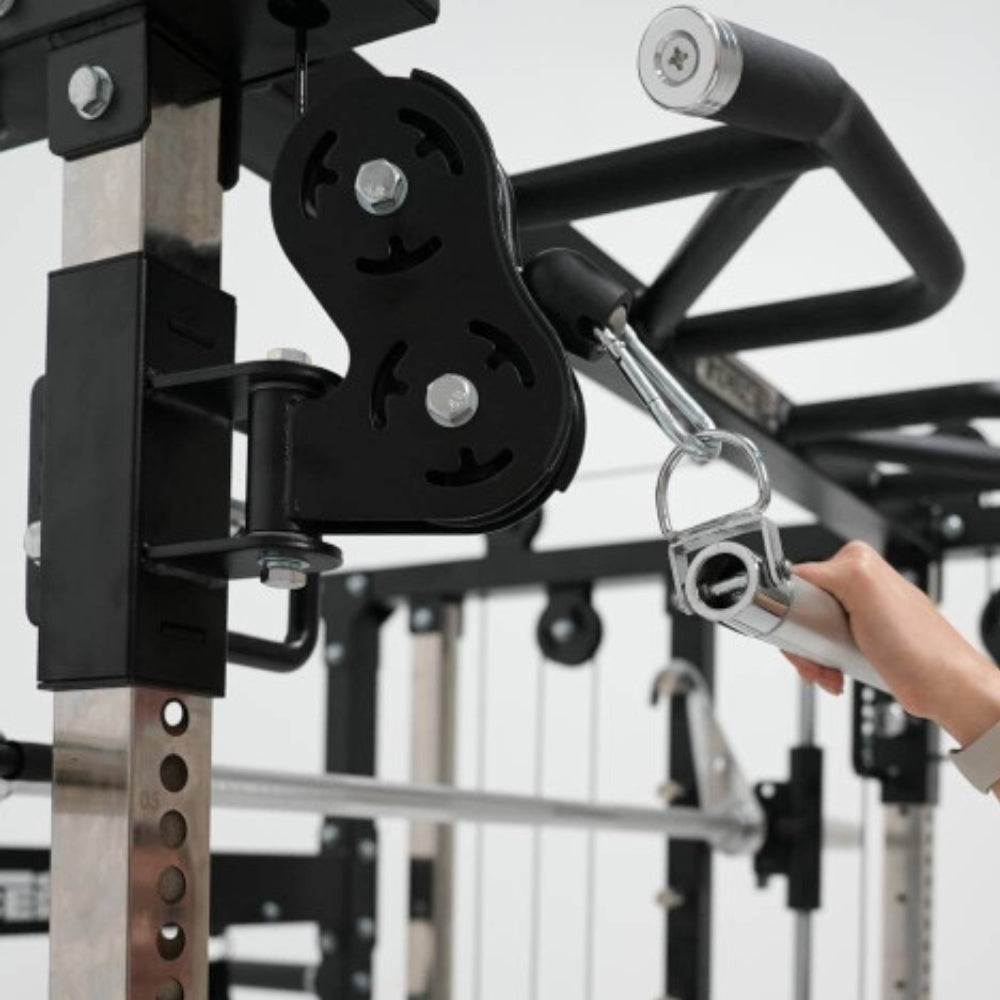

The dual 170 lb (77 kg) weight stacks offer smooth, independent resistance for unilateral training, balanced muscle growth, and injury rehab, and can be upgraded to 220 lbs (100 kg) for more challenge. Each weight stack operates on a 2:1 load-to-resistance ratio, meaning every 10 kg of load translates to 5 kg of cable resistance, which allows for greater cable travel and a wider range of motion. High-quality pulley sliders and easy pop-pin adjustments make transitions between exercises quick and seamless.

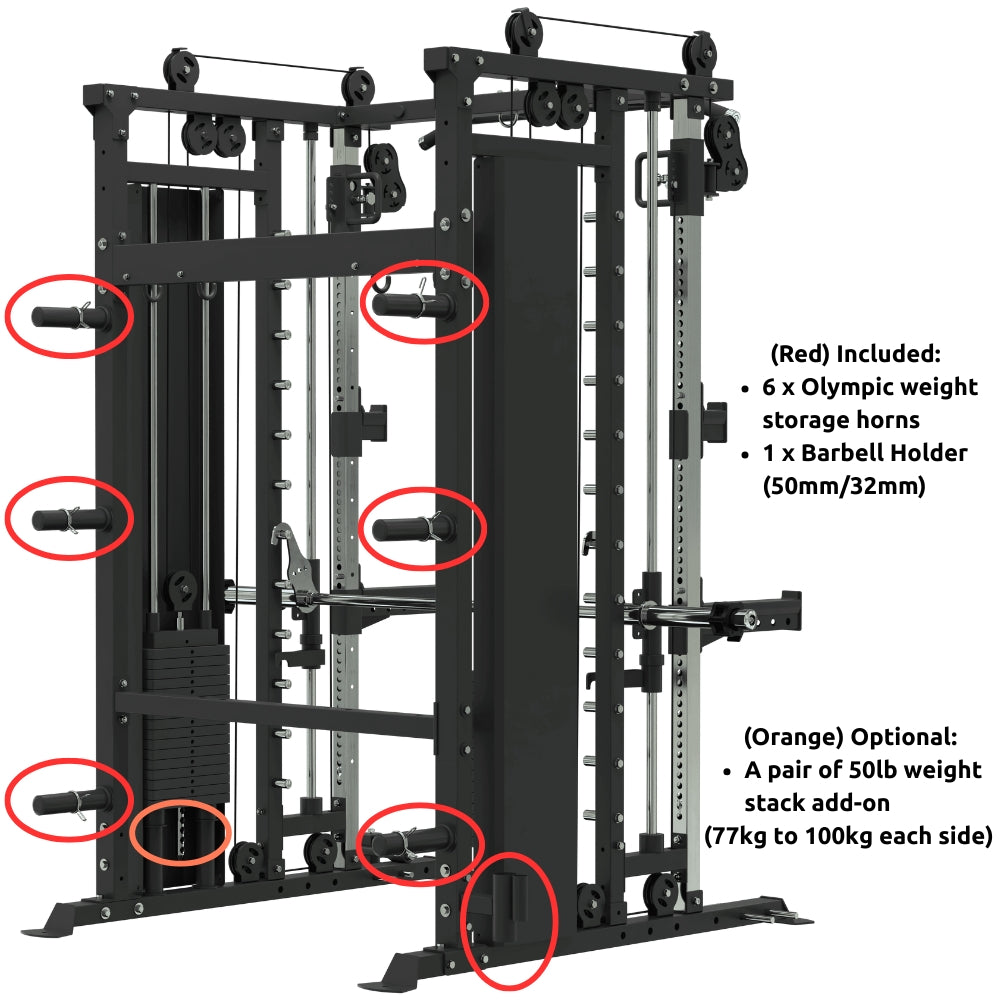

The G4 is equipped with vertical barbell storage (50mm or 32mm)  as well as 6 weight horns for olympic weight plate storage. Spring collars are also included to keep the weight plates in place during storage. With commercial-grade components packed into a home-friendly design, the Force USA G4 All-In-One Trainer lets you train like a pro without leaving your space.

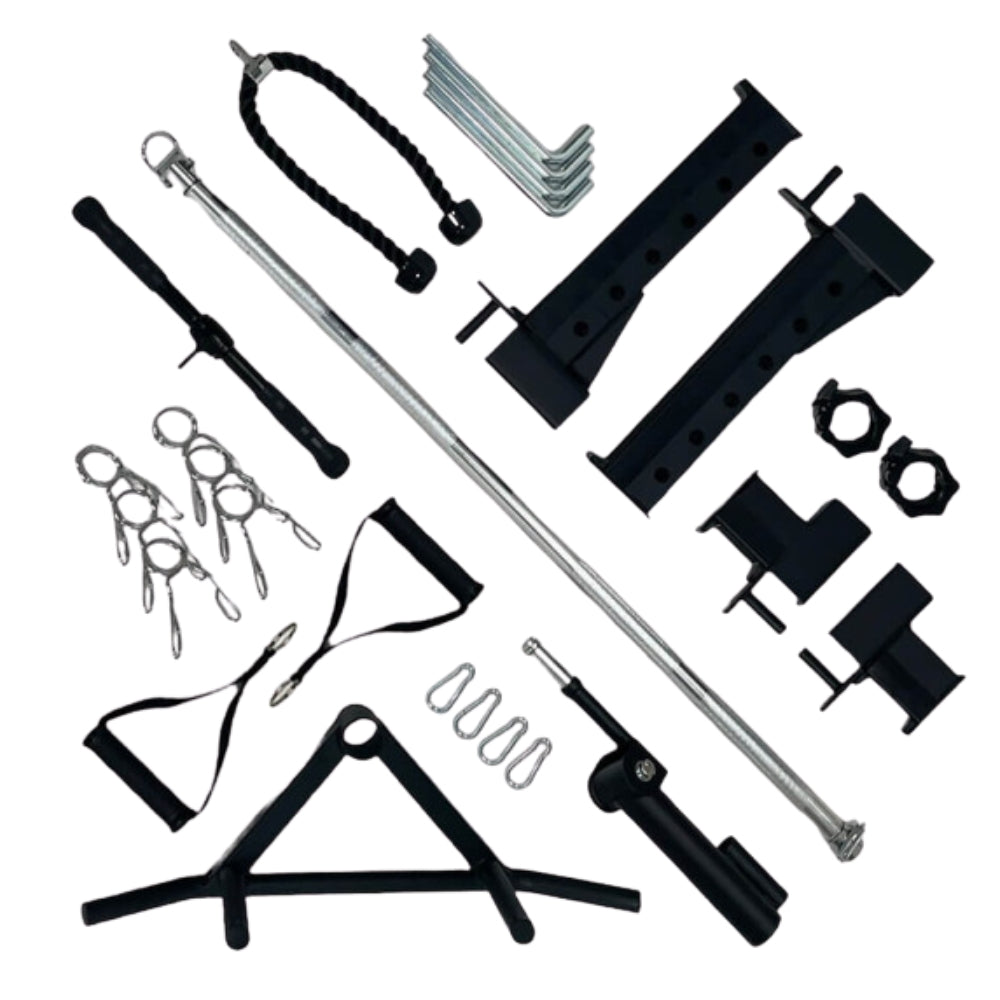

Force USA G4 All-In-One Trainer includes:
● 1 x Tricep Rope
● 2 x Single Nylon Handle
● 1 x Connection Bar Straight
● 1 x Short Straight Bar
● 1 x Landmine + T-bar Handle
● 6 x Spring Collars
● 4 x Resistance Band Pegs
● 2 x Easy Lock Collars
● 2 x J-hooks
● 2 x Safety Spotters
