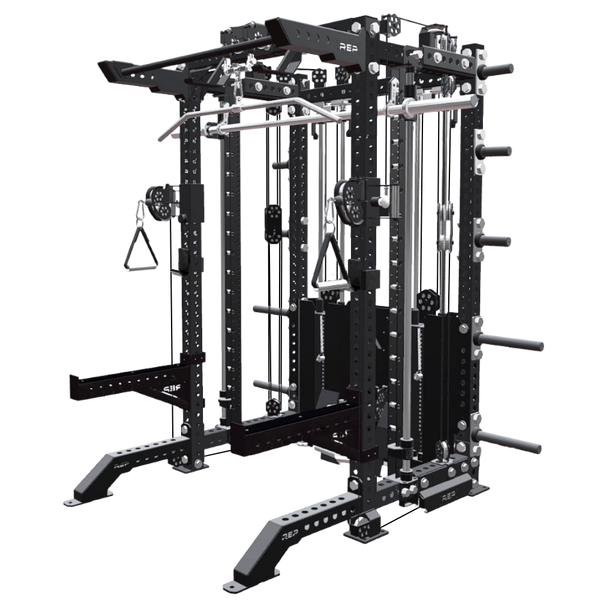

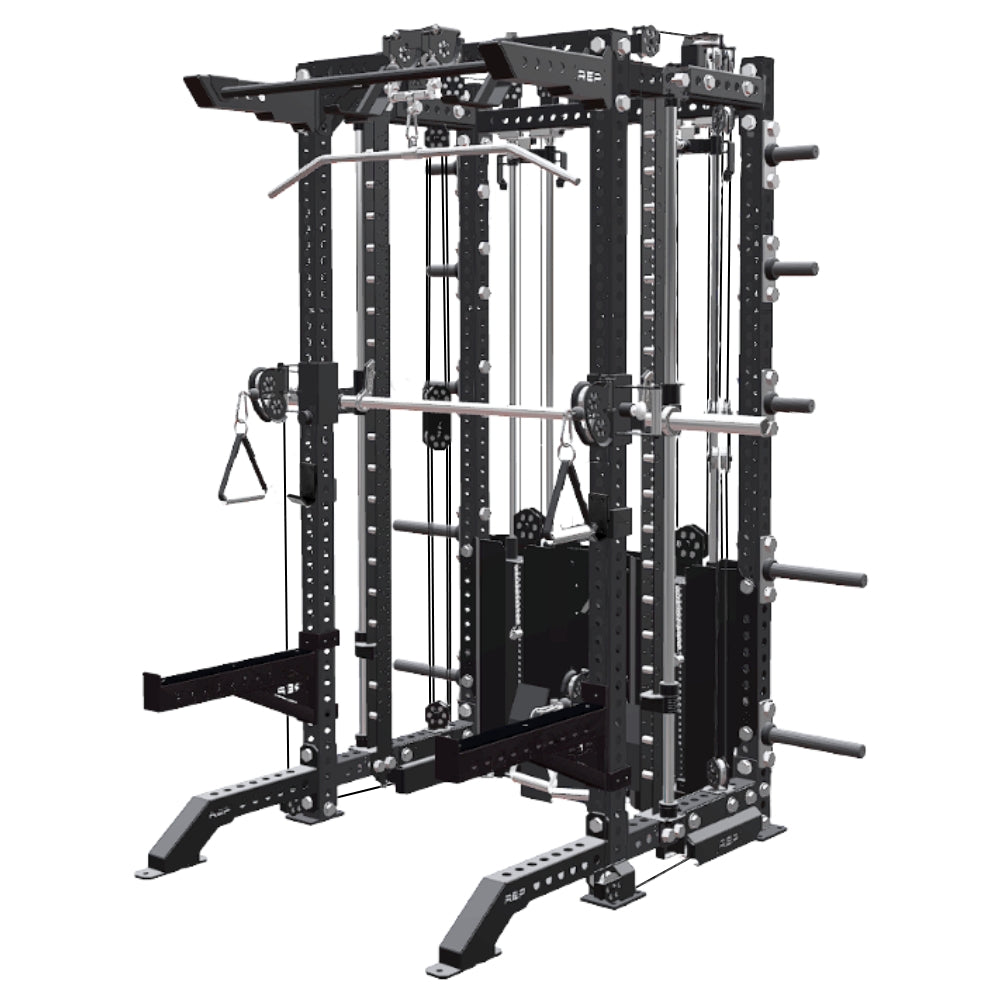

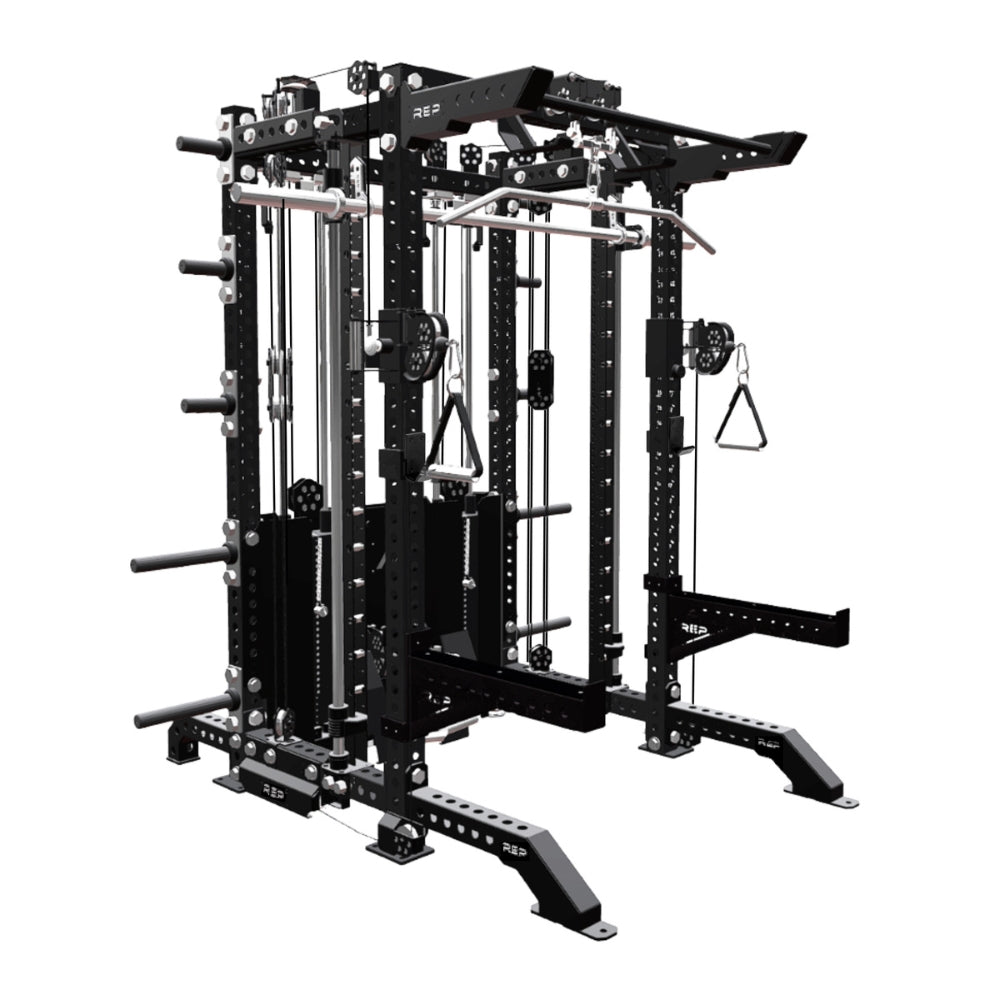

REP Summit All-In-One Trainer with Ares 2.0

REP Fitness
$8,599.00$9,099.00
Size
Assembly

View delivery information

For courier service or free doorstep delivery, the point of delivery will only be up to your doorstep, with no stairs prior to that. If you require items to be carried up stairs of any sort, or require further shifting/ transporting/ removal, advance notice is required due to time constraints. Please note that additional fees will be collected. Service fee imposed will be based on the number of flights and the difficulty of the task. Click here for more information: FAQ

REP Summit All-In-One Trainer with Ares 2.0 - 80" / Self Assembly is backordered and will ship as soon as it is back in stock.

Specifications

  • Pulley Ratio
    2:1 (100kg load : 50kg resistance)
  • Weight Stack
    2 x 118kg (260lb)
  • Adjustability
    Over 30 adjustable cable position
  • Spotter Length
    59.5cm (23.4")
  • Mainframe
    75x75mm, 11-gauge Steel
  • Material
    Steel
  • Sleeve Diameter
    50mm / 2in
  • Storage Sleeve
    6 x 15.2cm, 4 x 30.5cm
  • Grip Diameter
    Smith Bar: 35mm (1.37")
  • Extra Features
    Attachment included. Foot plate included. Selectorized hot-rolled steel weights. Lat pull and seated row function. Aluminum Pulleys. 180 degree swivel cable system. Colorado-style medium knurl smith bar with 19 levels of bar height adjustments for 93" racks, 16 levels for 80".
  • Installation
    Not included. Please refer to the option for assembly service.
  • Dimensions

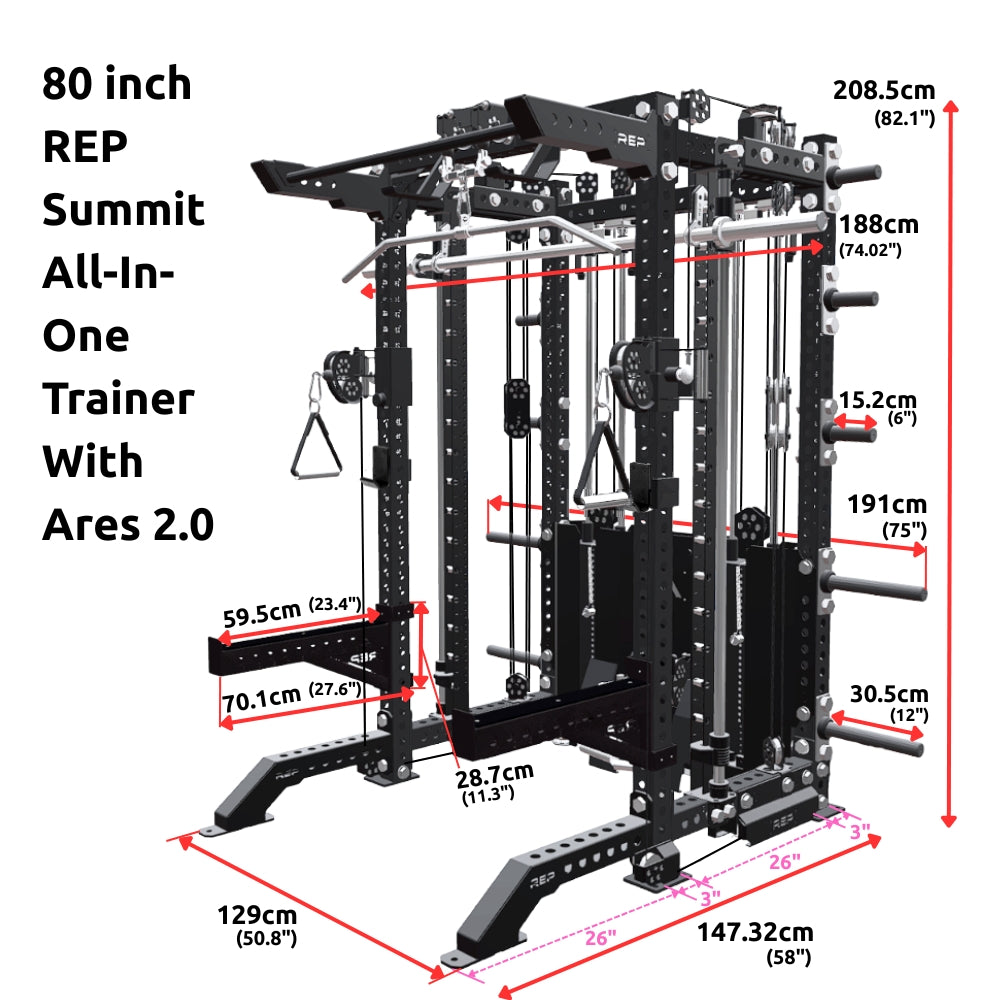

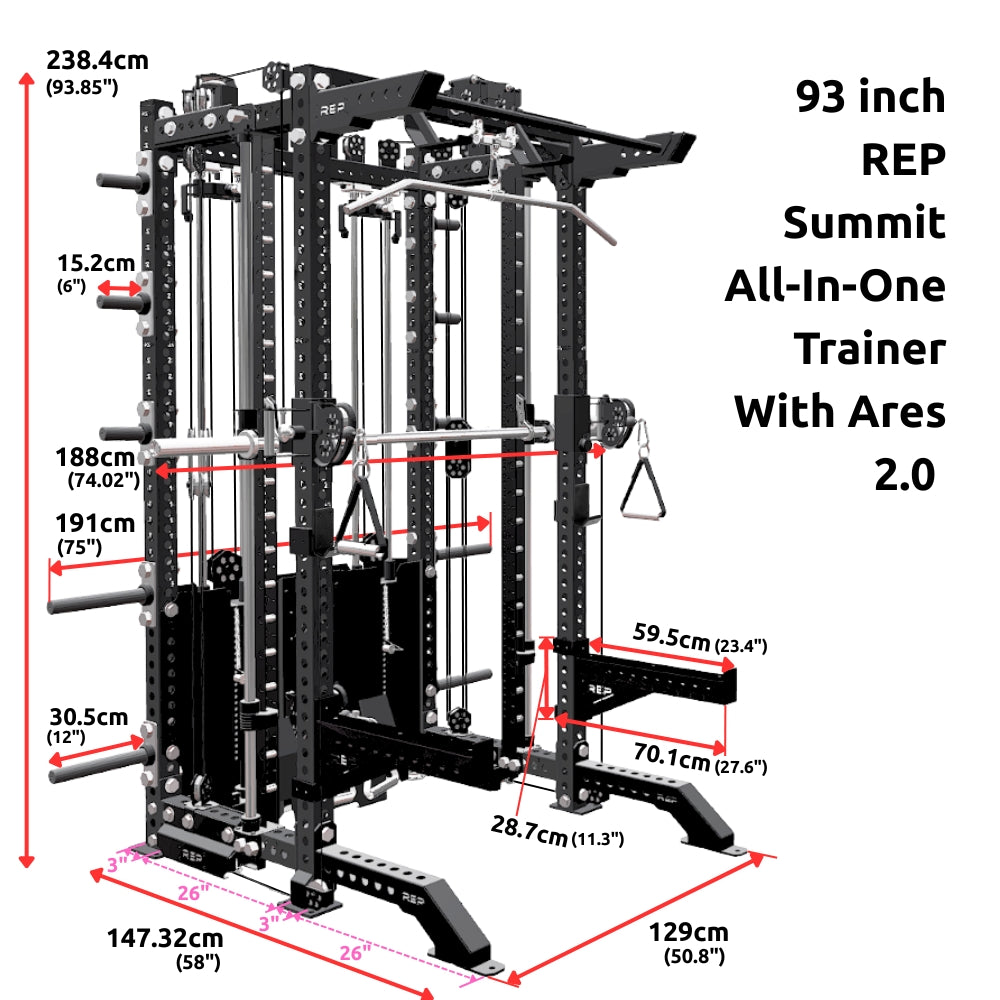

    80" Summit with Ares 2.0: 147.32 (L) x 129 (W) x 208.5 (H) cm / 93" Summit with Ares 2.0: 147.32 (L) x 129 (W) x 238.4 (H) cm
  • Product Weight
    80" Summit with Ares 2.0: 516.2kg (1138lb) / 93" Summit with Ares 2.0: 543.4kg (1198lb)
  • Max Load
    RACK: 453.5kg (1000lb) / CABLE: 204kg (450lb) / SMITH: 204kg (450lb)
  • Hole Size
    25mm (1in)
  • Hole Spacing
    50mm (2in)
  • Loadable Sleeve
    28.9 cm (Smith Bar)
  • Surface Coat
    Metallic black powder coat. Hard chrome smith bar.
  • Warranty for Home
    Strength premium: Lifetime on structural frame (excludes coating & rust), 2 years on moving frames & components (bearings, lock pins, pulleys, cables, glide rods etc), 1 year on labour. Wear & tear exclusion.

Description

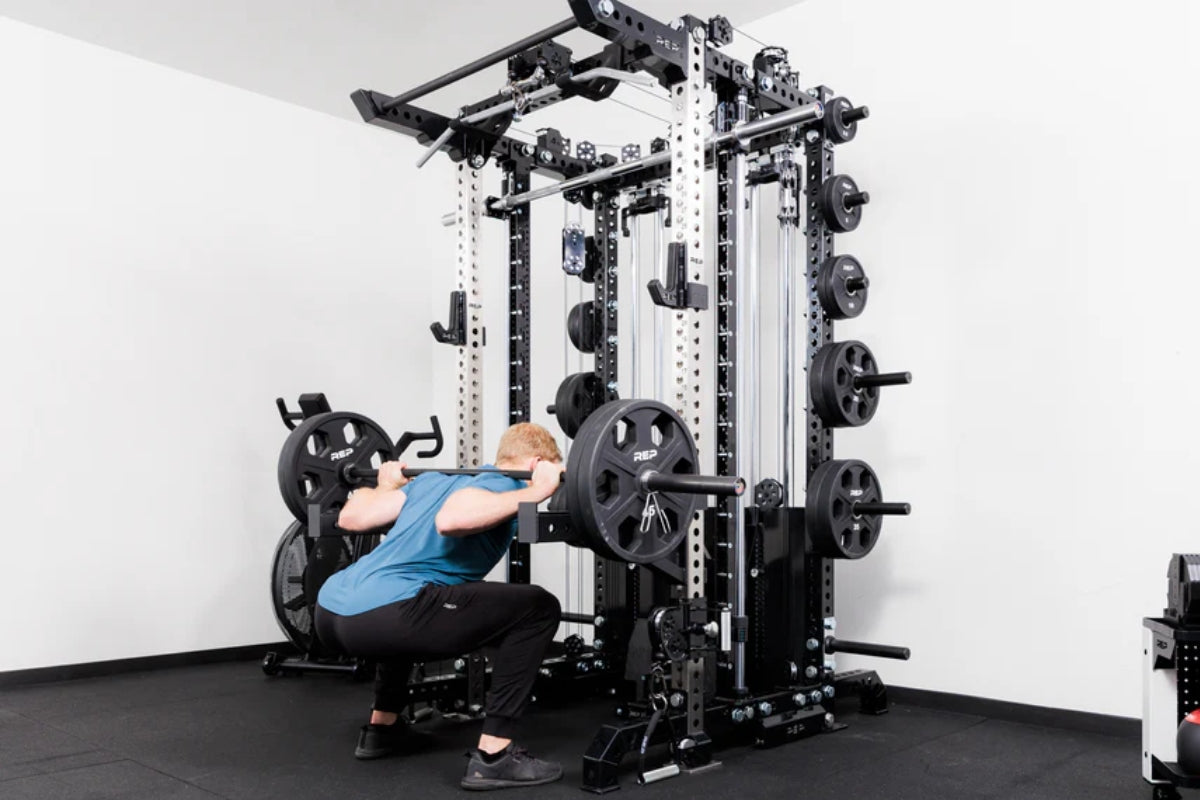

The Summit All-In-One Trainer with Ares 2.0 is a 4-post home gym system built for lifters who want the power of the best cable system and a Smith machine in one streamlined all-in-one home gym machine.

REP All-In-One Gym Rack Innovation
If you wanted a REP cable machine and Smith machine rack attachment, you needed a massive 6-post rack — until now. The custom 26" crossmember design supports both exercise equipment systems on a 4-post footprint, giving you a complete strength training and fitness solution without sacrificing half your garage. Engineered for athletes who want maximum workout versatility in the space they already have.

What You Get
● Complete cable machine functionality for full-body strength and functional fitness
● Vertical Smith machine for heavy, guided lifts
● Rock-solid stability with front foot extensions
● Maximum versatility in minimum space

What to Know
Due to the compact design, this is a vertical-only Smith machine, and some incline benches (like the Nighthawk or BlackWing) have limited clearance at some angles. But if you want to most cost-effective, space-efficient way to train with both cables and a Smith machine, this is the sweet spot.

Bottom Line

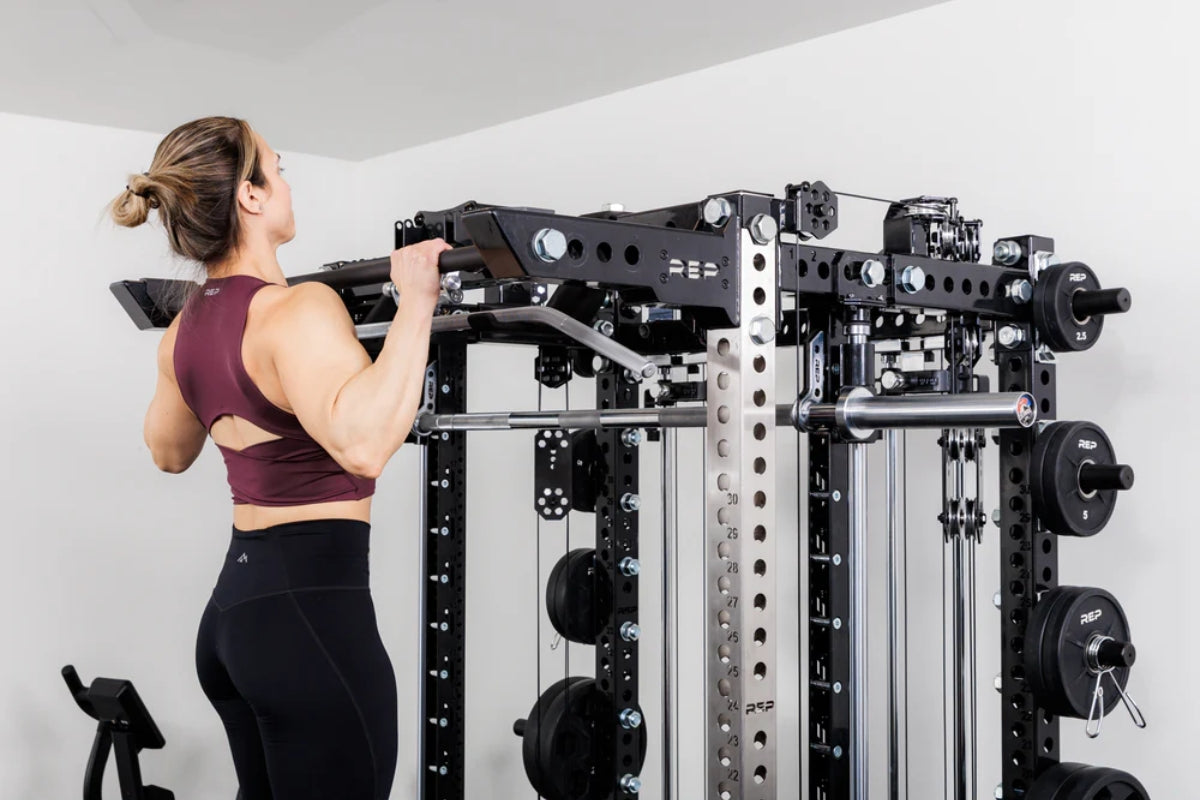

Pull ups, functional trainer, lat pull, low row, half rack and smith all in one compact rack. Endless opportunity.


REP Summit All-In-One Trainer with Ares 2.0 includes:
● 80” or 93” PR-5000 Rack — Uprights and Crossmembers
● Ares 2.0 Cable Machine Attachment (2 x 260lb weight stacks)
● Smith Machine Rack Attachment
● Smith Machine Barbell with Medium knurling, inspired by REPs Colorado barbells, but specifically optimized for use on the Smith machine
● Logo Plate Crossmember: Compact 2.0
● Weight Storage Horns
● Ares 2.0 4-Post Pull-Up Bar
● Spotter Arms
● J-cups
● Front Foot Extensions

Features

26in CM - Lifestyle - 207.jpg__PID:48a4da7d-0def-4caa-8b67-6143a91680ca

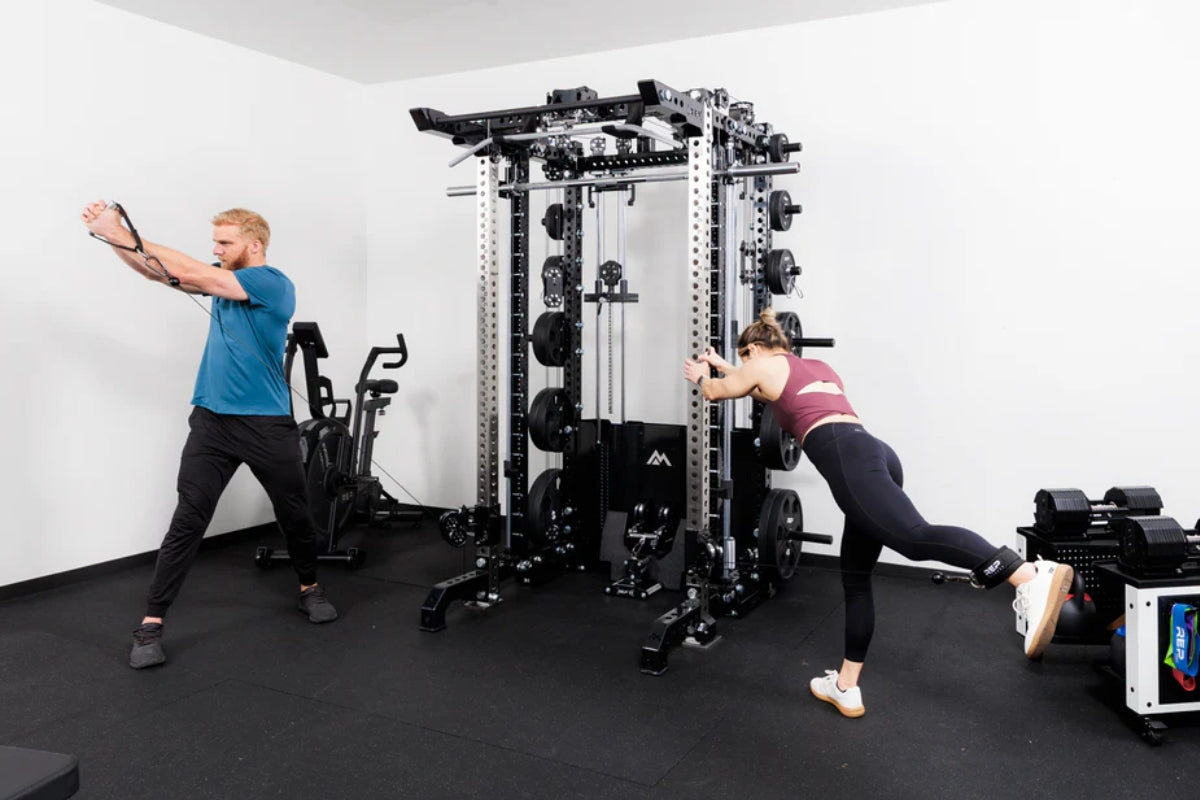

All-In-One Home Gym Machine

Brings together REP's premium attachments — Ares 2.0, Smith machine, and top-of-the-line rack features — into one high-functioning rack.

7.jpg__PID:562c06d3-42cd-4d7f-9bb1-f2ae0d452b5d

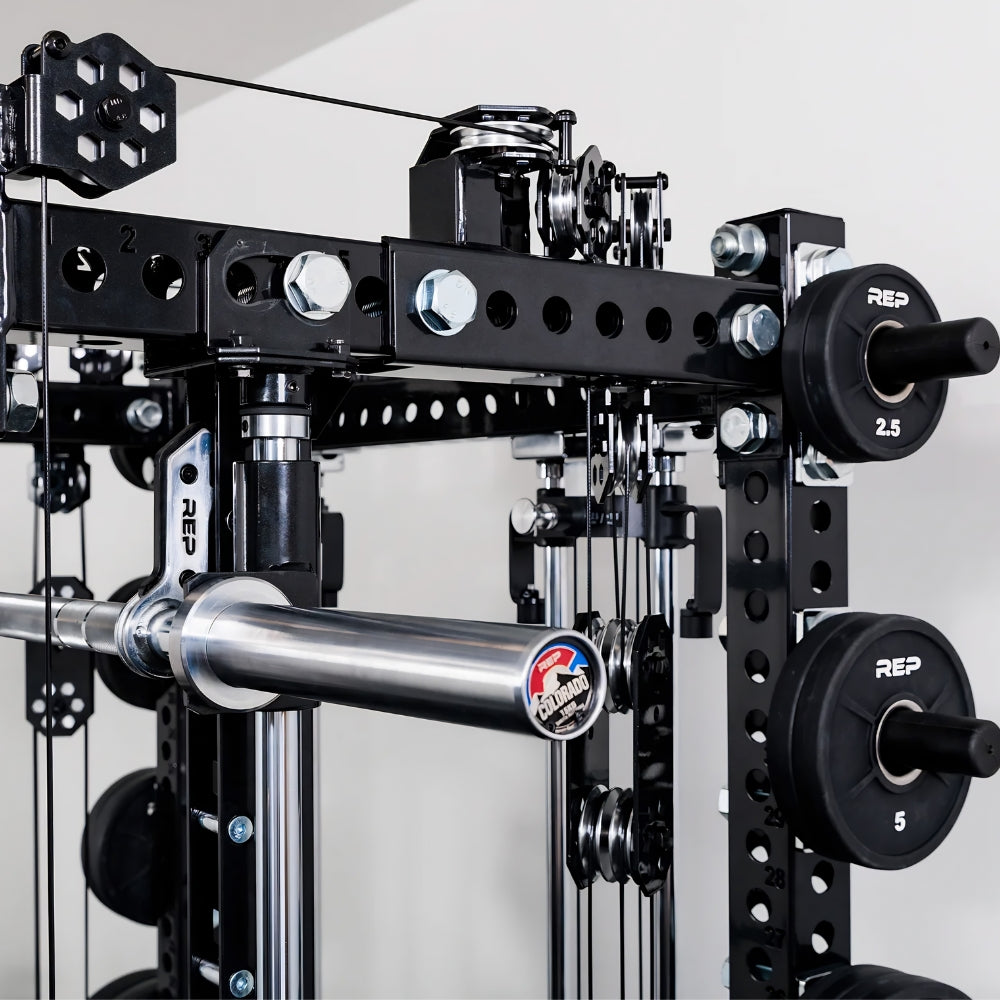

Unmatched Fitness Functionality

The Ares™ 2.0 provides smooth, precise cable operation while the vertically oriented Smith machine offers guided lifts. The entire system is engineered to work seamlessly in a tighter footprint while still delivering the premium feel you expect from REP.

10.jpg__PID:051bc061-2b6a-4bd5-a793-c7b050baa064

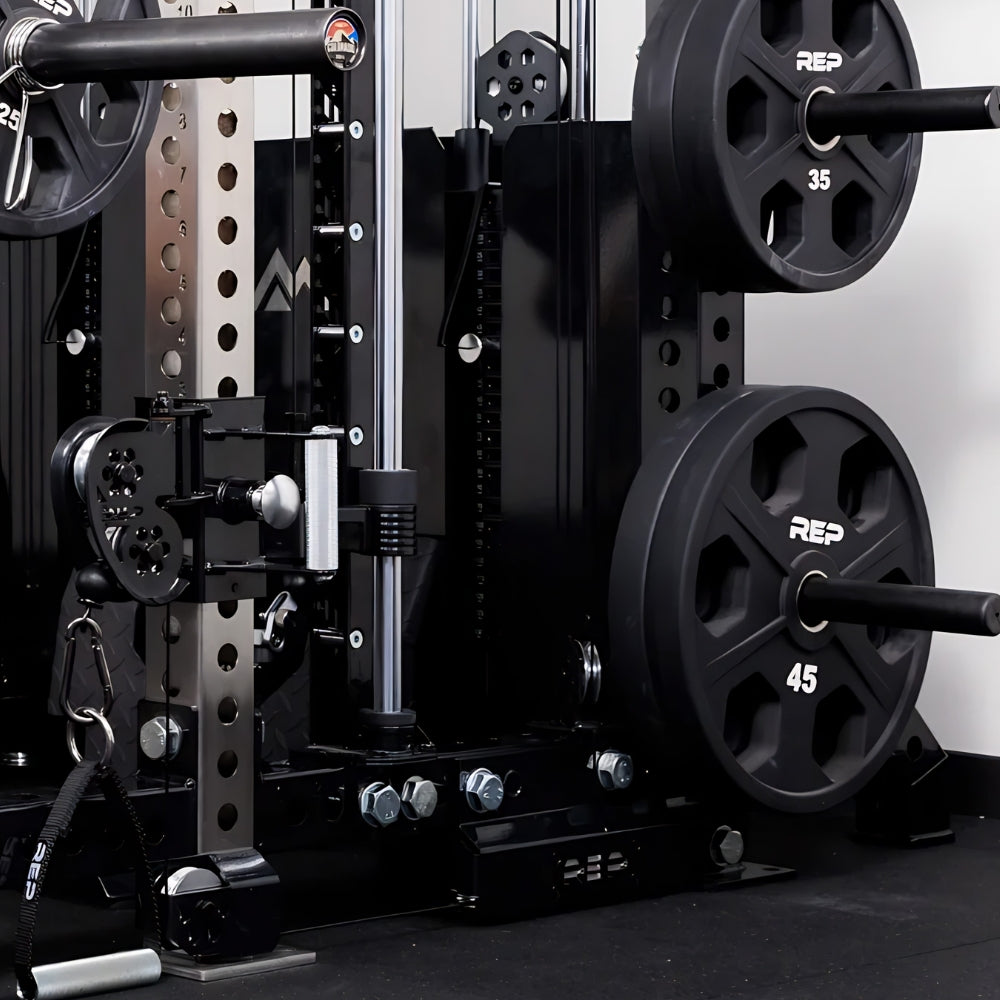

Engineered for Strength

Front foot extensions ensure the rack stays secure, so you feel strong, grounded, and ready for heavy training.

11.jpg__PID:38908428-87b7-4057-b264-5b9f0fe3f3cf

Exercise Equipment Ecosystem

This setup is built to grow with you. With REP’s cohesive and ever-expanding Summit attachment ecosystem, you can easily expand functionality and customize your rack over time — ensuring your training evolves with your goals.





26in CM - Lifestyle - 232.jpg__PID:40abe82d-9d4c-4c3d-8e1f-f67b15082da5

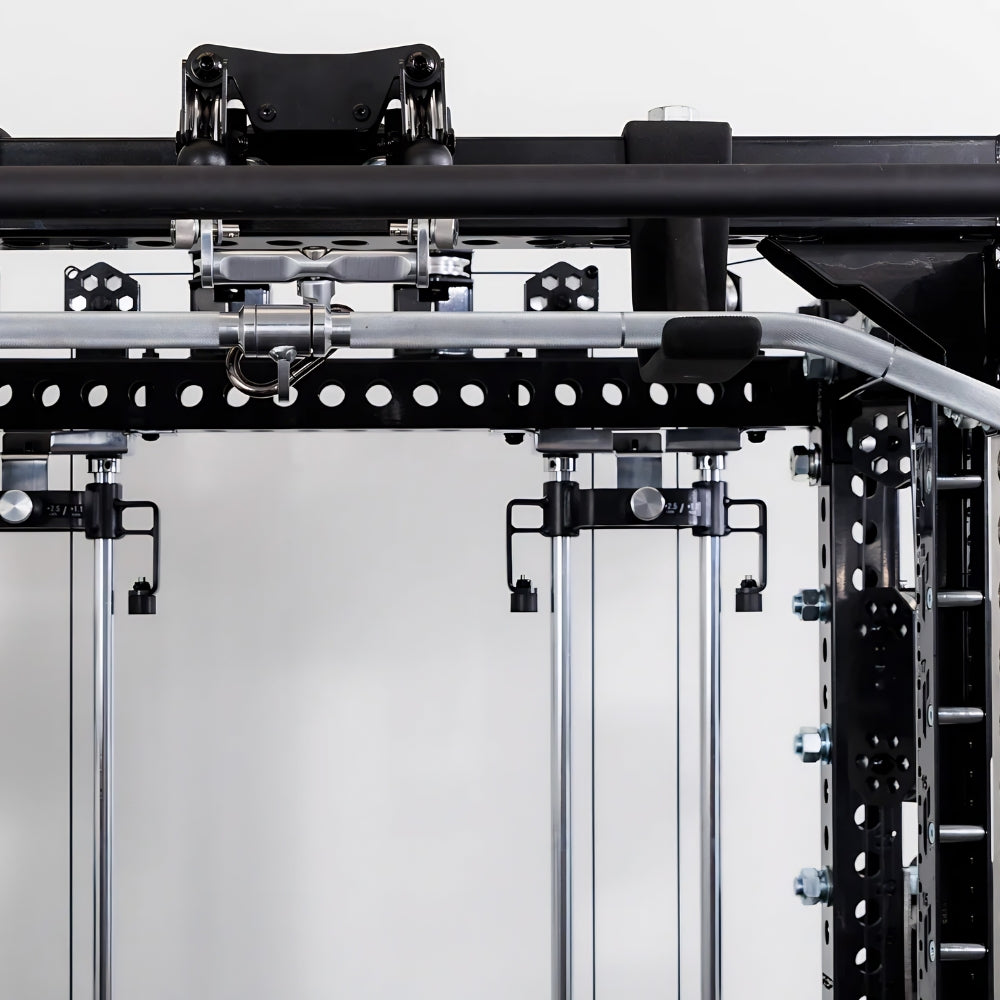

The Best Cable System:
Ares 2.0

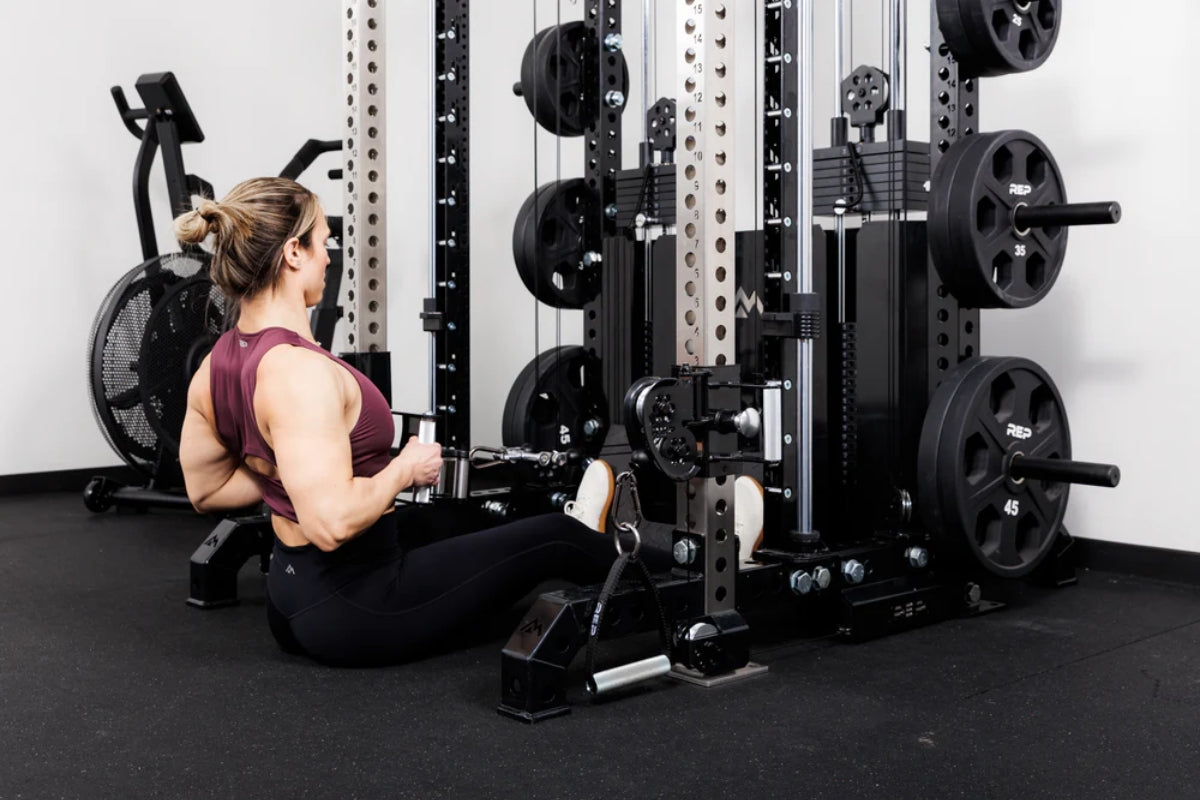

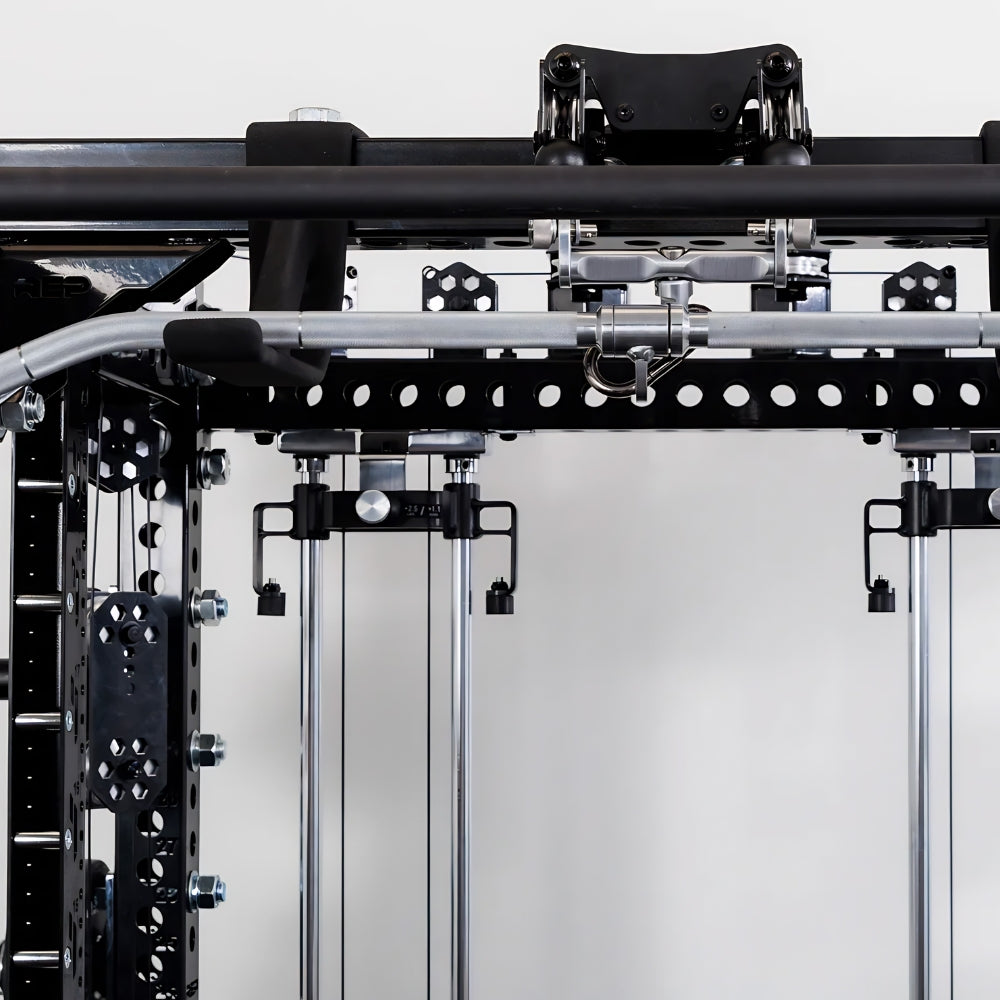

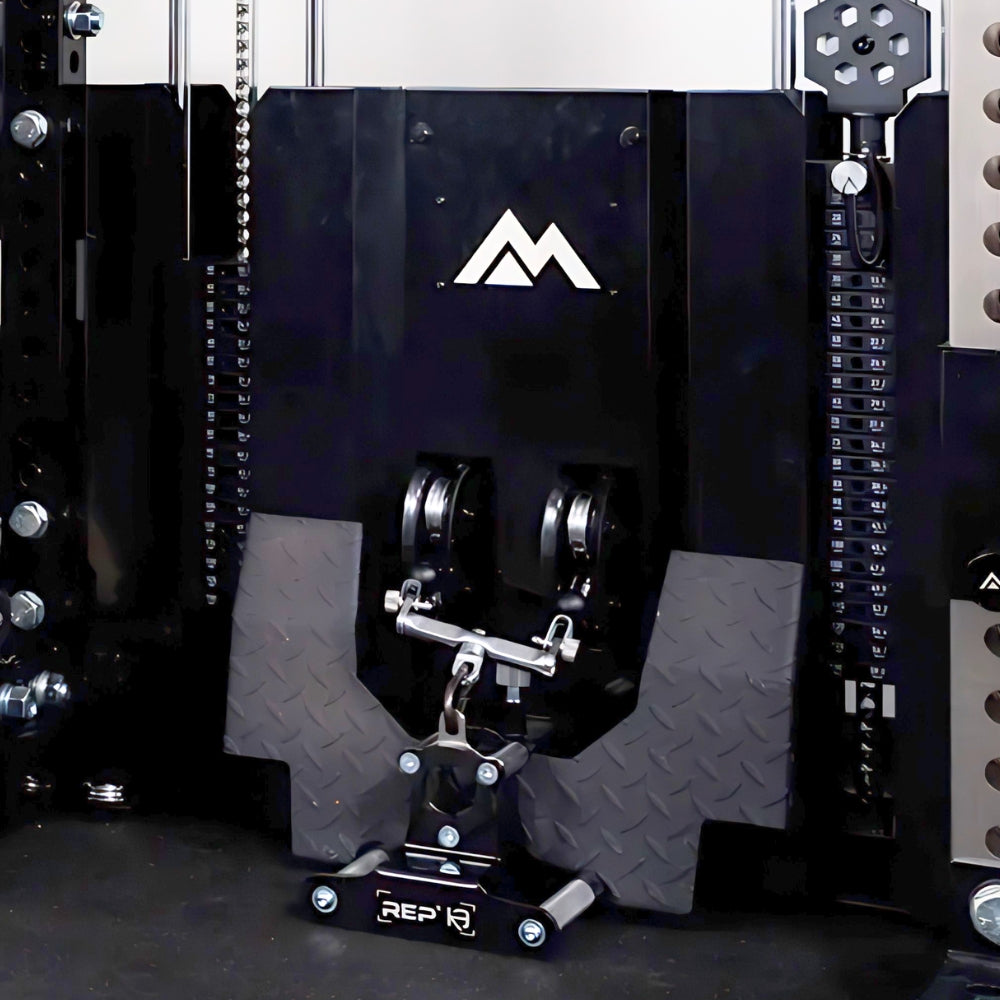

The Ares 2.0 cable system is our most elite functional trainer attachment. It supports full-body workouts, including lat pulldowns and low rows, and features a redesigned footplate for more ergonomic lifting and deeper bench placement. Patent-pending cable routing and dual weight stacks deliver smoother, extended travel for both unilateral and bilateral training.


26in CM - Lifestyle - 176.jpg__PID:916cdc8a-d2b8-42ce-98b5-30e4792d4bab

Smith Machine

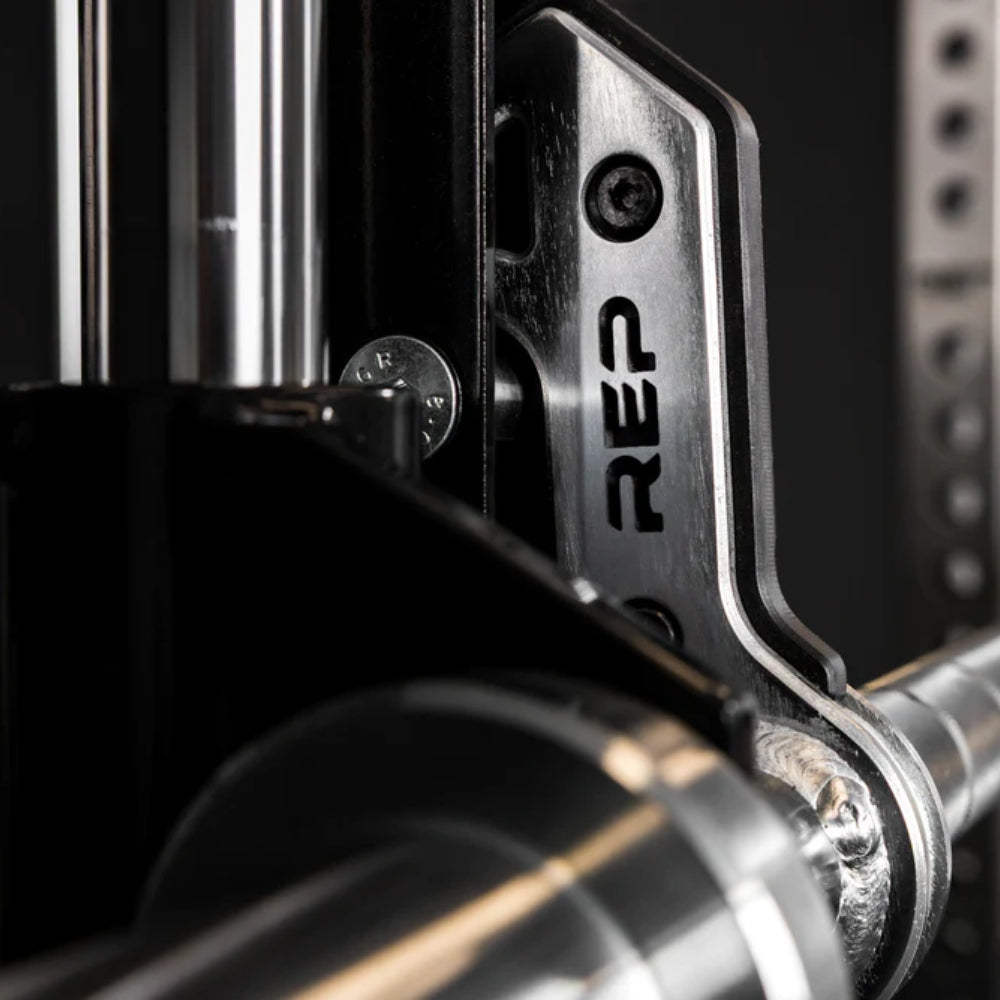

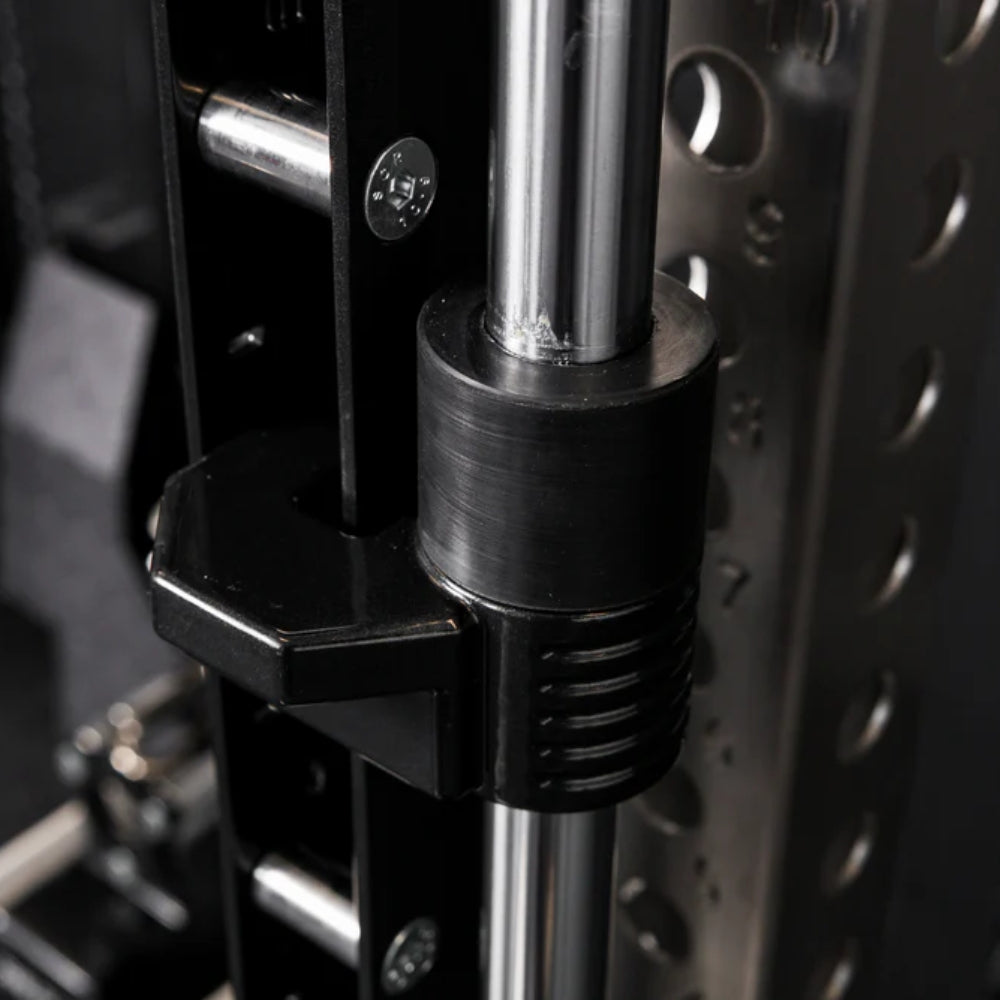

The Smith machine rack attachment features a 0-degree vertical path, moving straight up and down for consistent, guided stability through a full range of motion — from floor work to overhead presses. Premium bearings and composite-lined bar hooks ensure a smooth performance with minimal friction. The 15kg bar comes with Colorado style knurling and can be loaded up to 450 lbs. Compatible with upcoming attachments, so your training can continue to evolve.
